420KN Container Lashing Stacking Cone
● Series: Container loose parts
● Material: Cast &high tensile steel
● Finish: Hot dipped galvanized
● Min. breaking load:420Kn
Description
Specification
Bottom stacking cone | Intermediate stacking cone |

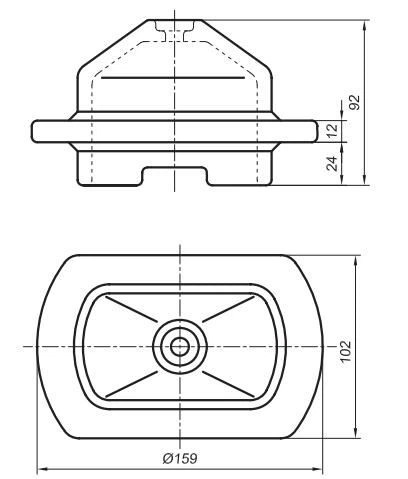

S-1 bottom stacking single
| S-3
|

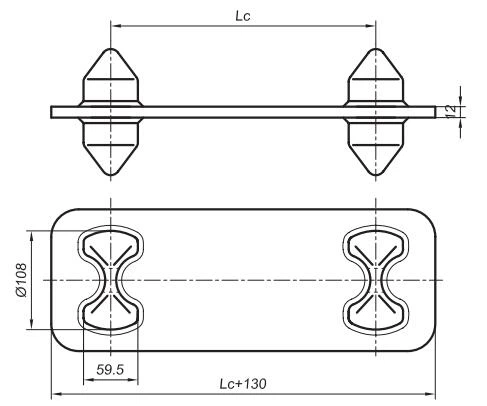

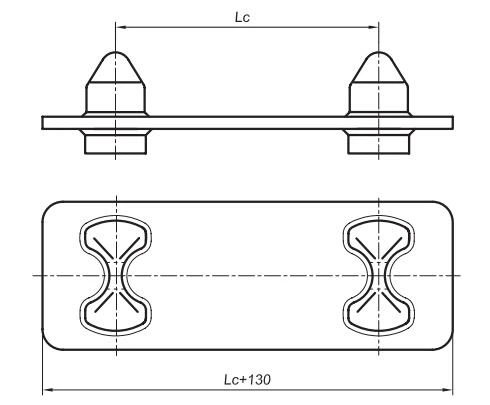

S-2T bottom stacker , double, transversal
| S-4T
|

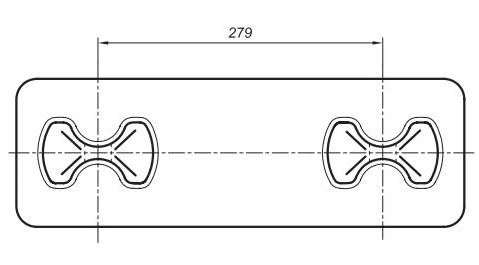

S-2L bottom stacker , double, longitudinal

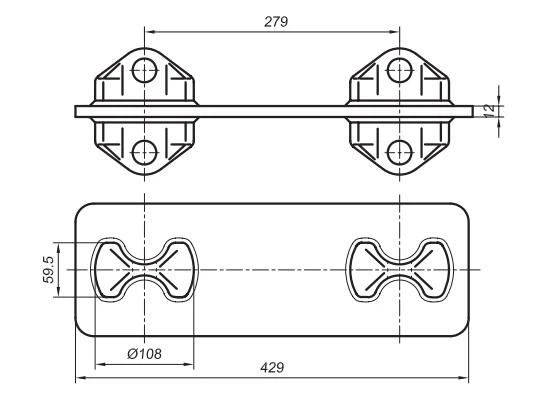

| S-4L
|
MODEL NO. | T | B.L. | WEIGHT |
S-1 cast type | 12 | 420KN | 2KG |
S-1A/12 welding type | 12 | 4KG | |
S-1A/16 welding type | 16 | 4.5KG | |
S-3 cast type | 12 | 2.5KG | |
S-3A/12 welding type | 12 | 4.5KG | |
S-3A/16 welding type | 16 | 5KG |
MODEL NO. | Lc | T | B.L. | WEIGHT |
S-2T(203)/12 bottom type | 203 | 12 | 800KN | 8KG |
S-2T(216)/12 bottom type | 216 | 12 | 8.2KG | |
S-2T(258)/12 bottom type | 258 | 12 | 8.8KG | |
S-2L(279)/12 bottom type | 279 | 12 | 10.5KG | |
S-4T(203)/12 intermedial type | 203 | 12 | 9.2KG | |
S-4T(216)/12 intermedial type | 216 | 12 | 9.4KG | |
S-4T(258)/12 intermedial type | 258 | 12 | 10KG | |
S-4L(279)/12 intermedial type | 276 | 12 | 11.5KG |
Classification: All items are approved by major classification societies
Materials: Cast &high tensile steel
Finish: Hot dip galvanized
Remarks: Other lengths, materials and finish upon request
