Cast Steel Studlink Anchor Chain

● Type: stud link anchor chain
● Grade: U1, U2, U3 /R3, R3S, R4
● Material: U1：CM370 ; U2：CM490; U3：CM690
● Surface treatment: black painting or customize
● Accessories: Kenter shackle, end shackle, swivel set

Send Inquiry

Description

Production Introduction

Anchor chains can be produced by forging, casting and welding. In marine anchor chain there are stud link anchor chain and studless link anchor chain. The anchor chain is the chain connecting the anchor and the hull, which is used to transfer and buffer the external force on the ship. It also produces some of the friction.

Features:

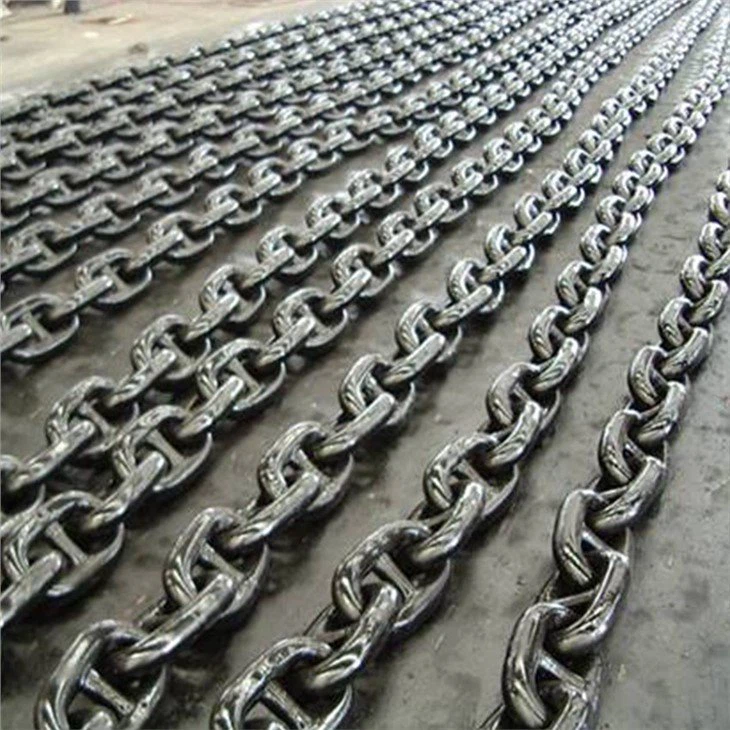

● Name: cast steel stud link steel anchor chain

● Grade: U1, U2, U3 /R3, R3S, R4

● Material: U1：CM370 ; U2：CM490; U3：CM690

● Surface treatment: black painting or customize

● Accessories: Kenter shackle, end shackle, swivel set

Specification of cast steel stud link anchor chain

anchor chain Diameter	CHAIN LINK SIZE		AM1		AM2		AM3		APPROX.
			U1 STUD LINK CHAIN		U2 STUD LINK CHAIN		U3 STUD LINK CHAIN		WEIGHT
	L	B							27.5M
	Outside	Outside	Proof	Breaking	Proof	Breaking	Proof	Breaking
	Length	Length	Load	Load	Load	Load	Load	Load
MM	MM	MM	KN	KN	KN	KN	KN	KN	KG
12.5	75	45	46	66	66	92	92	132	98
14	84	50.4	58	82	82	116	116	165	119
16	96	57.6	76	107	107	150	150	216	156
17.5	105	63	89	127	127	179	179	256	186
19	114	68.4	105	150	150	211	211	301	230
20.5	123	73.8	123	175	175	244	244	349	260
22	132	79.2	140	200	200	280	280	401	300
24	144	86.4	167	237	237	332	332	476	370
26	156	93.6	194	278	278	389	389	556	431
28	168	100.8	225	321	321	449	449	642	496
30	180	108	257	368	368	514	514	735	564
32	192	115.2	291	417	417	583	583	833	635
34	204	122.4	328	468	468	655	655	937	712
36	216	129.6	366	523	523	732	732	1050	800
38	228	136.8	406	581	581	812	812	1160	887
40	240	144	448	640	640	896	896	1280	1032
42	252	151.2	492	703	703	981	981	1400	1084
44	264	158.4	538	769	769	1080	1080	1540	1197
46	276	165.6	585	837	837	1170	1170	1680	1310
48	288	172.8	635	908	908	1270	1270	1810	1438
50	300	180	686	981	981	1370	1370	1960	1546
52	312	187.2	739	1060	1060	1480	1480	2110	1661
54	324	194.4	794	1140	1140	1590	1590	2270	1791
56	336	201.6	851	1220	1220	1710	1710	2430	1926
58	348	208.8	909	1290	1290	1810	1810	2600	2086
60	360	216	969	1380	1380	1940	1940	2770	2249
62	372	223.2	1030	1470	1470	2060	2060	2940	2361
64	384	230.4	1100	1560	1560	2190	2190	3130	2516
66	396	237.6	1160	1660	1660	2310	2310	3300	2676
68	408	244.8	1230	1750	1750	2450	2450	3500	2885
70	420	252	1290	1840	1840	2580	2580	3690	3010
