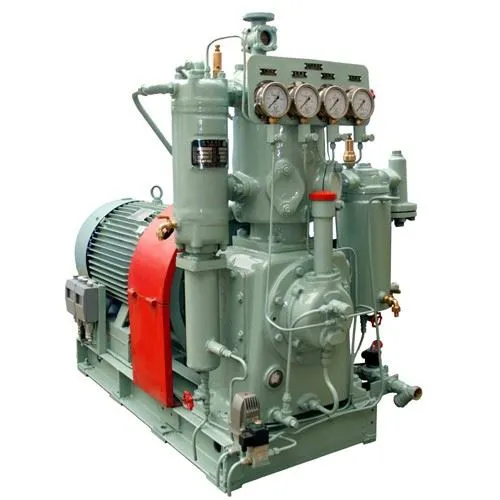

Marine Medium Pressure Air Compressor

● Series: HC
● Capacity range: 54 to 190 m3/h
● Pressure: 30bar
● 2-stage water cooled

Description

Air compressors perform a variety of functions in marine environments. It can be used to fill compressed air cylinder. It can be used as main compressors that start for engine, it can also be used on deck that can operate a variety of pneumatic power tools, and also have functions related to cleanliness and sanitation.

Main Technical Parameter

1. HC Series Marine Air Compressor (Low capacity)

Name	Air Compressor
Type	Vertical, water cooled, two stage compression
Model No.	HC-25/30	HC-65/30	HC-69/30	HC-72/30	HC-82/30	HC-90/30
Capacity m3/h	54	65	69	72	82	90
Discharge pressure Mpa	3	3	3	3	3	3
Shaft power kw	12.5	15.2	15.5	16.5	19	20.5
Rotation rating r/min	730	870	730	960	870	960
Cooling water consumption m3/h	1.0-1.4
Lubrication	Forced lubrication by gear pump
Driving method	Direct coupling
Motor
Model	Y200L-8-H	Y225S-8-H	Y225S-8-H	Y200L1-6-H	Y225M-8-H	Y200L2-6-H
Power kw	15	18.5	18.5	18.5	22	22
Voltage v	380	440	380	380	440	380
Frequency Hz	50	60	50	50	60	50
Protection grade	IP44
Insulation class	B
Weight kg	700

2. HC₂ Series Marine Air Compressor (High capacity)

Name	Marine Air Compressor
Type	Vertical, water cooled, two stage compression
Model No.	HC-137/30		HC-170/30		HC-190/30
Capacity m3/h	137		170		190
Discharge pressure Mpa	3		3		3
Shaft power kw	31		38		41
Rotation rating r/min	730		870		960
Cooling water consumption m3/h	1.0-1.4
Lubrication	Forced lubrication by gear pump
Driving method	Direct coupling
Motor
Model	Y280S-8-H	Y280M-8-H		Y280S-6-H
Power kw	36	45		45
Voltage v	380	440		380
Frequency Hz	50	60		50
Protection grade	IP44
Insulation class	B
Weight kg	1400
