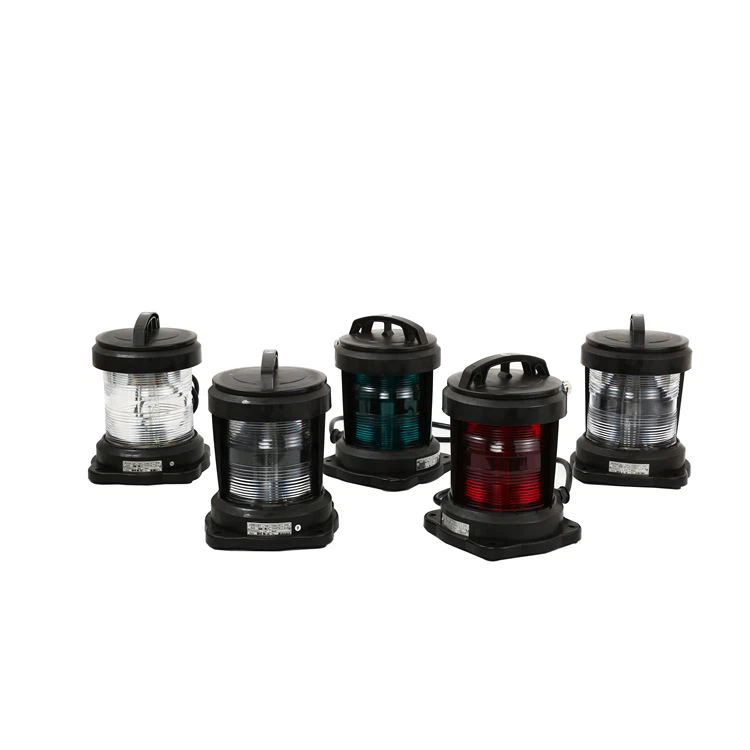

Marine Starboard 8W Led Light CXH1-11PL
● Series: signal light
● Illuminant: LED
● Power: 8W
● Voltage: AC100-240v, DC24V
Description
Marine starboard 8W led light CXH1-11PL applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation
This kind LED navigation light is comes from the navigation light CXH-11which use a bulb as illuminant
Product Feature
1. Structure material: The shell: high-strength engineering plastic PA+GF, the lamps-head : PC, lens hood :good quality stainless steel
2. The signal lights have the whole seal structure, is waterproof under the harsh environment.
3. Working tempreture:-30℃ ～55 ℃
Adopt standard
1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS
2. Conform to the International standard IEC60598-l-2008.
SINGLE-DECK NAVIGATION SIGNAL LIGHT CXH-11P
Voltage | Ac100-240V 50/60Hz, DC24V |
Protection class | IP56 |
Cable outside Diameter | Φ10~Φ12 |
Illuminant | LED |
Name | Type | Visibility | Level arc | Color | Power |
Starboard light | CXH1-11P | 3n.m | 112.5° | Green | 8W |
Port light | CXH2-11P | 3n.m | 112.5° | Red | 8W |
Masthead light | CXH3-11P | 6n.m | 225° | White | 8W |
Stern light | CXH4-11P | 3n.m | 135° | White/yellow | 8W |
All-round light | CXH6-11P | 3n.m | 360° | Red/green/white | 8W |
