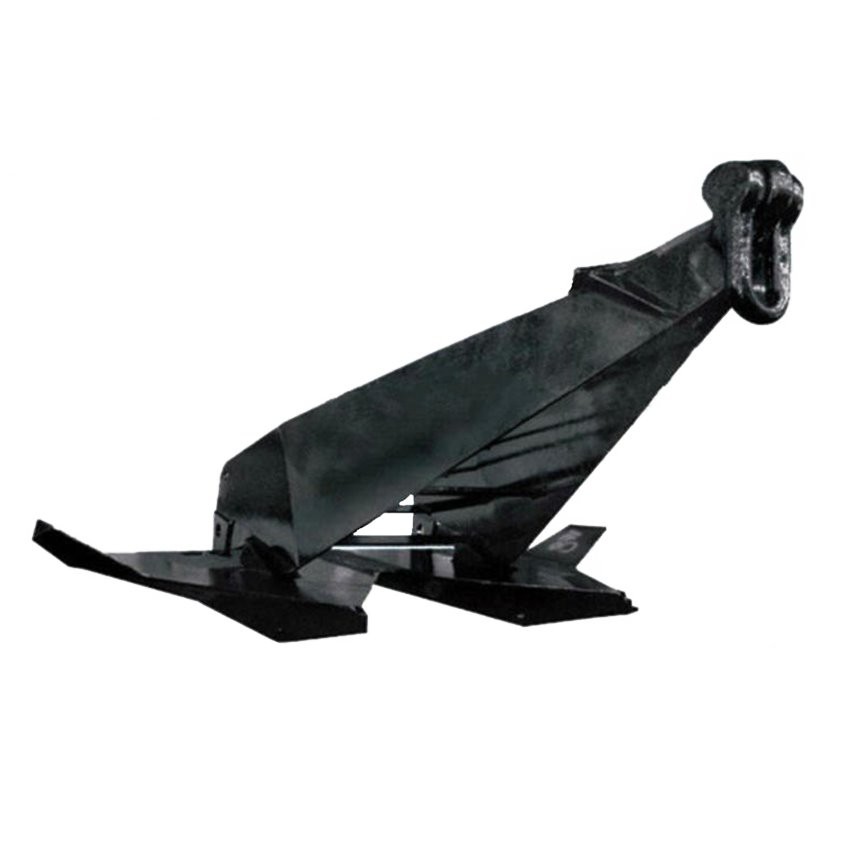

Drag MK5 HHP Anchor
● Welded MK5 HHP anchor
● Type: Stevshark Anchor
● Weight: 1000kg to 30000kg
● Material: high tensile steel plate
Description

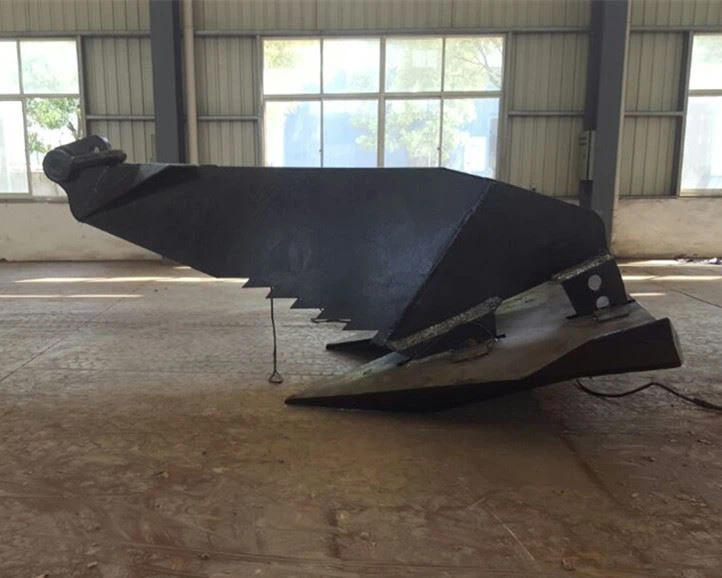

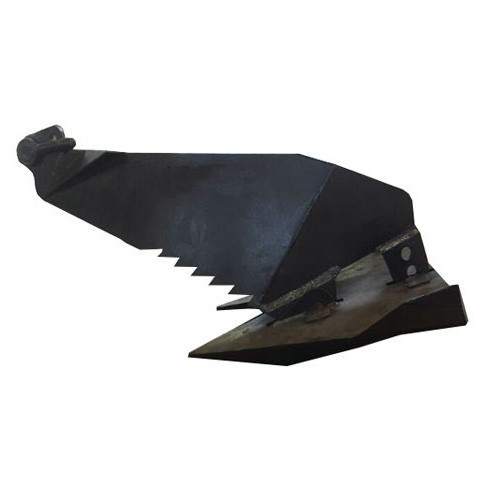

Drag MK5 HHP anchor is also called Stevin anchor, is used as offshore anchor. As high holding power anchor the welding MK5 anchor is a deep penetration anchor with a plough handle. It performs well in hard soils such as limestone, calcareous rock, very dense sand and coral. Its modifications include a stronger construction, shark teeth, sharp fluke edges and fluke tips. Optionally the hollow fluke can be ballasted to assist initial penetration.
Features:
● Welded MK5 HHP anchor
● Type: Stevshark Anchor
● Weight: 1000kg to 30000kg
● Material: high tensile steel plate
● Finishing: black painting
● Certificate: DNV-GL, ABS, LRS, BV, KR, NK, RS, IRS, RINA, CCS
● Origin: China

| Nominal Weight kg | Dimention (mm) | ||||||
| A | B | C | E | F | H | T | |
| 1000 | 2580 | 2780 | 1582 | 1314 | 236 | 1074 | 430 |
| 1500 | 2954 | 3184 | 1812 | 1896 | 342 | 1550 | 622 |
| 3000 | 3721 | 4011 | 2283 | 1896 | 342 | 1550 | 622 |
| 5000 | 4412 | 4756 | 2707 | 2248 | 406 | 1837 | 738 |
| 7000 | 4910 | 5290 | 3011 | 2500 | 453 | 2045 | 825 |
| 8000 | 5161 | 5563 | 3166 | 2629 | 474 | 2149 | 862 |
| 10000 | 5559 | 5992 | 3410 | 2832 | 511 | 2315 | 929 |
| 12000 | 5908 | 6368 | 3624 | 3010 | 543 | 2460 | 988 |
| 15000 | 6364 | 6868 | 3904 | 3242 | 585 | 2650 | 1064 |
| 2000 | 7004 | 7550 | 4297 | 3569 | 644 | 2917 | 1171 |
| 2500 | 7545 | 8133 | 4629 | 3844 | 694 | 3142 | 1262 |
| 3000 | 8018 | 8645 | 4919 | 4085 | 737 | 3339 | 1341 |
