Marine Steel Watertight Quick Action Door
● Series: weathertight door
● Material: steel
● Water pressure: <0.07Mpa
● Thickness: 8mm
Description

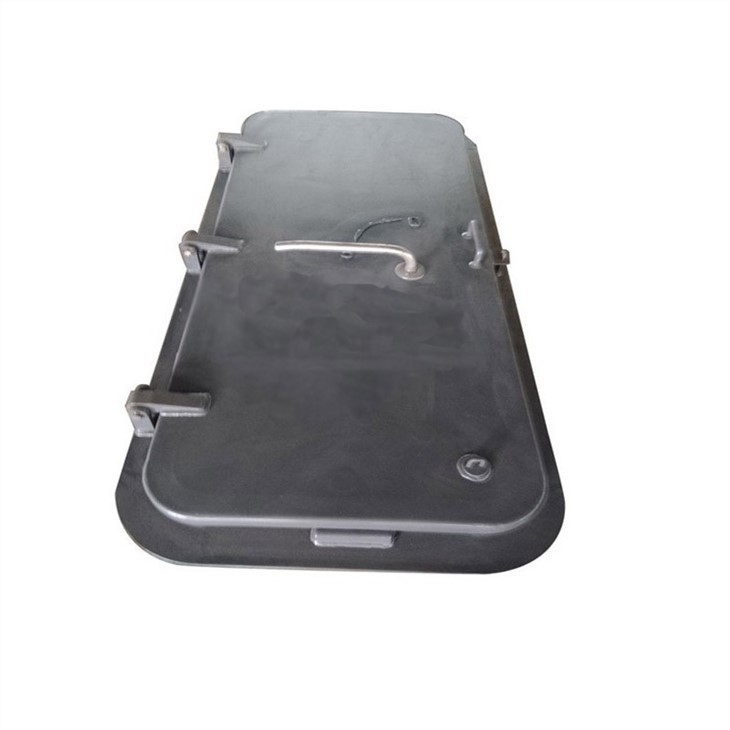

Marine steel quick action weathertight or watertight door
This two type door could be used as both weather tight and water tight door while used as watertight door the pressure no more than 0.07Mpa.
The door has passed all IACS belonged class certification. Central hand wheel type quick action door is also in our supply scope.
Optional door for this steel water tight/ weather tight door
1. Material: Aluminum and brass material available
2. Pressure: pressure resistant watertight door that can bear pressure under 0.15Mpa.
3. with round window or without
Parameter
|
Code of Standard |
Size of Doorway (L*B*R) |
Size of Door (L1*B1*R1) |
Hole Size of Casing Wall (L2*B2*R2) |
Thickness of Doorsheet (t) |
Weight (kg) |
|
1050 |
1000*500*100 |
1063*563*131.5 |
1100*600*150 |
6 |
92.3 |
|
1067*567*133.5 |
8 |
103.8 |
|||
|
1260 |
1200*600*100 |
1263*663*131.5 |
1300*700*150 |
6 |
113.4 |
|
1251*651*125.5 |
8 |
129 |
|||
|
1460 |
1400*600*100 |
1449*649*124.5 |
1500*700*150 |
6 |
128.6 |
|
1451*651*125.5 |
8 |
146.7 |
|||
|
1475 |
1400*700*100 |
1449*799*124.5 |
1500*850*150 |
6 |
144.4 |
|
1451*801*125.5 |
8 |
165.9 |
|||
|
1490 |
1400*900*100 |
1449*949*124.5 |
1500*1000*150 |
6 |
160.1 |
|
1451*951*125.5 |
8 |
185.2 |
|||
|
1660 |
1600*600*100 |
1649*649*124.5 |
1700*700*150 |
6 |
136.9 |
|
1651*651*125.5 |
8 |
154.8 |
|||
|
1675 |
1600*750*100 |
1649*799*124.5 |
1700*850*150 |
6 |
161.4 |
|
1651*801*125.5 |
8 |
185.7 |
|||
|
1690 |
1600*900*100 |
1649*949*124.5 |
1700*1000*150 |
6 |
178 |
|
1651*951*125.5 |
8 |
206.4 |
FAQ

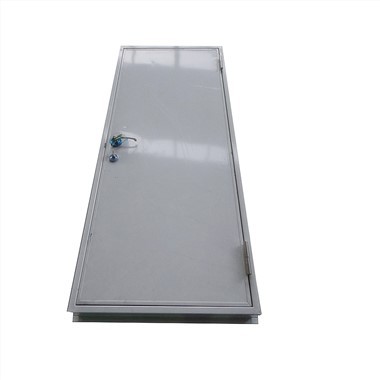

Q1: Can you provide A60 fire resistant marine cabin door for offshore project?
A: A60 grade fireproof marine doors with related certification are available for order.
Q2: Is aluminum marine door with sight window available for small fishing boat?
A: We supply compact-size customized aluminum doors specially for fishing vessel cabins.
Q3: Do you produce sliding type marine access door for offshore platform?
A: Sliding watertight/weathertight doors are one of our regular customized products.
