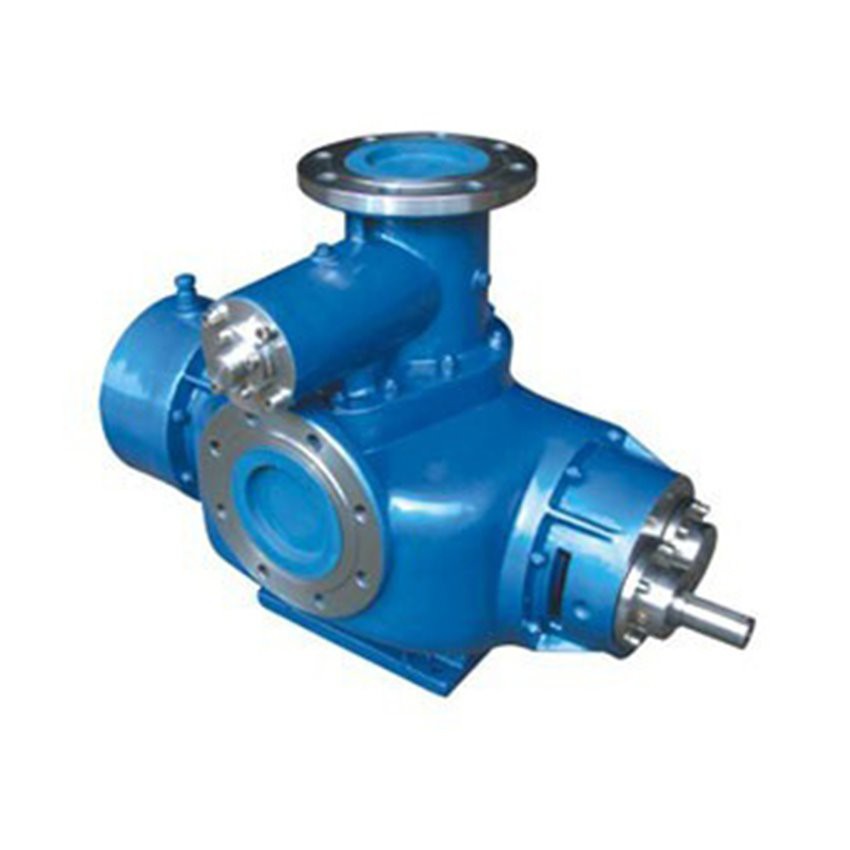

Marine Stainless Steel Cargo Oil Pump

● Series: 2HM
● Type: twin screw pump
● Capacity: 0.5~2000m3/h
● Pressure: 0.1~6Mpa
● Viscosity: 0.5~100,00mm2/s

Description

2HM series stainless steel twin screw pump is usually used as marine main cargo oil pump for oil tanker. It is a kind of middle and large double suction double screw pump.

Twin screw pump can transfer various fluid medium without solid or high viscosity paste medium. It has wide availability and reliability, no matter the liquid has lubrication or no lubrication and no matter corrosion or mixed with gas and other liquids.

Application

2HM series twin screw pump used for marine as cargo and stripping pump, ballast pump, main lubricating oil pump, fuel oil transfer pump, load or unload oil pump, etc.

Performance

● Type: twin screw pump

● Capacity: 0.5~2000m3/h

● Pressure: 0.1~6Mpa

● Viscosity: 0.5~100,00mm²/s

● Temperature: -20~250℃

● Material: we will choose and design according to medium

● Drive: Diesel engine or electric motor

● Large flux, good self-suction performance, low noise and long service life

The leading features of twin screw pump

1. Deliver various medium smoothly without disturbing and pulsation. The construction of pump casing guaranteed there are always have medium to be pumped throughout in the working elements as sealing liquid.

2. All of the pump possess high self- priming ability and can deliver the liquid mixture with gas or air.

3. The special design of pump guaranteed the pump has high suction performance that means very low NPSHr.

4. Adopted the external bearing which lubricated individually, so can deliver various non-lubrication medium.

5. Adopted synchronous gear, there is on metallic contact between rotating parts, there is no dangerous even dry running in a short time.

6. Various construction completely such as horizontal, vertical and casing with liner, and so on. the pump can handle various clean liquid without solid grain, low or high vis-cosity medium, even can deliver some corrosive medium with a correct material selection.

7. Suction of the pump is at the flank and discharge is on the top, the pump has small cub-age, so it is especially used to the place of small space, such as cabin.

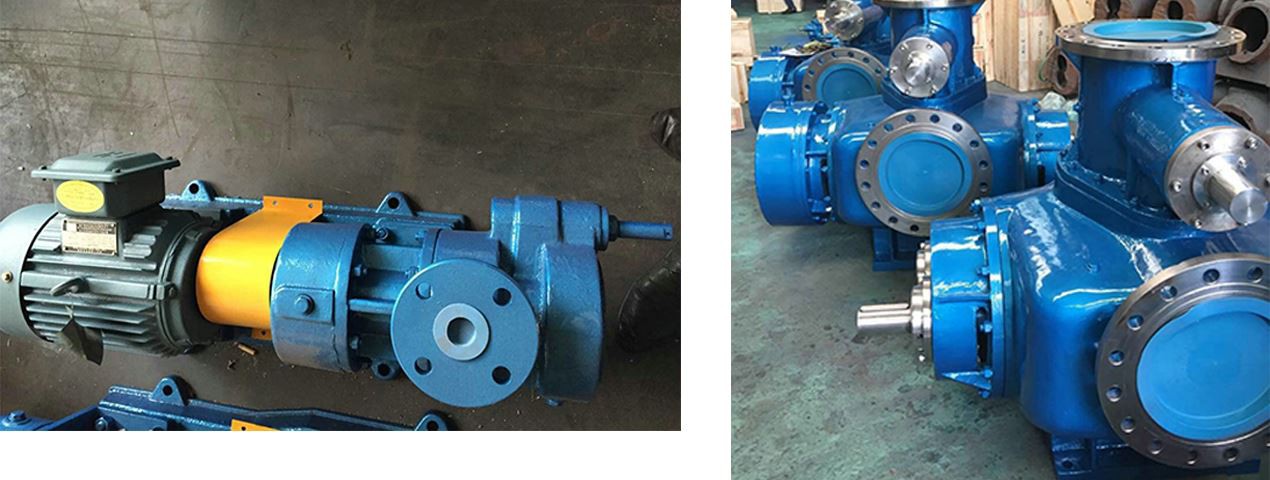

2HM twin screw pump
