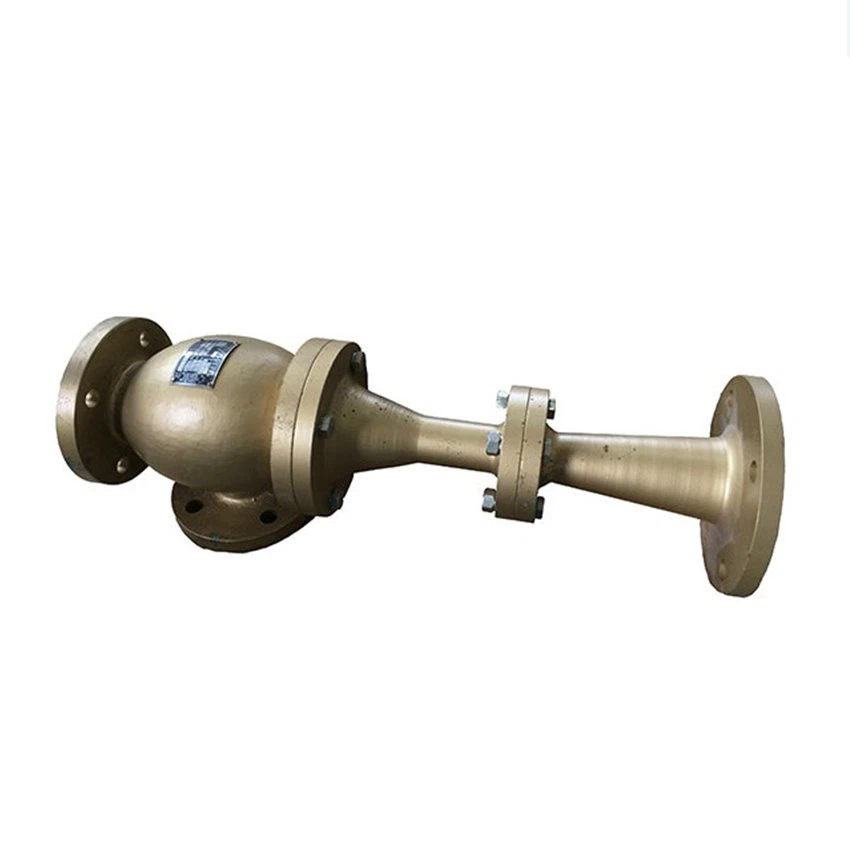

Marine Ejector For Ship Drainage System

● Series: CP, CPT, CPJ
● Type: marine ejector
● Capacity: 0~600m3/h
● Head: 5~30m

Description

CP Series marine ejector are used for ship drainage system, it has the advantages of simple structure, no moving parts, long service life, etc., has good self absorption performance, can work continuously and stably. Mainly used in ship drainage system, is also widely used in petrochemical, environmental protection, water conservancy, building materials and other industries, to draw a line of fresh water, mixed with liquid, river dredging, sewage treatment, transportation, etc

Analyze of CP ejector Features

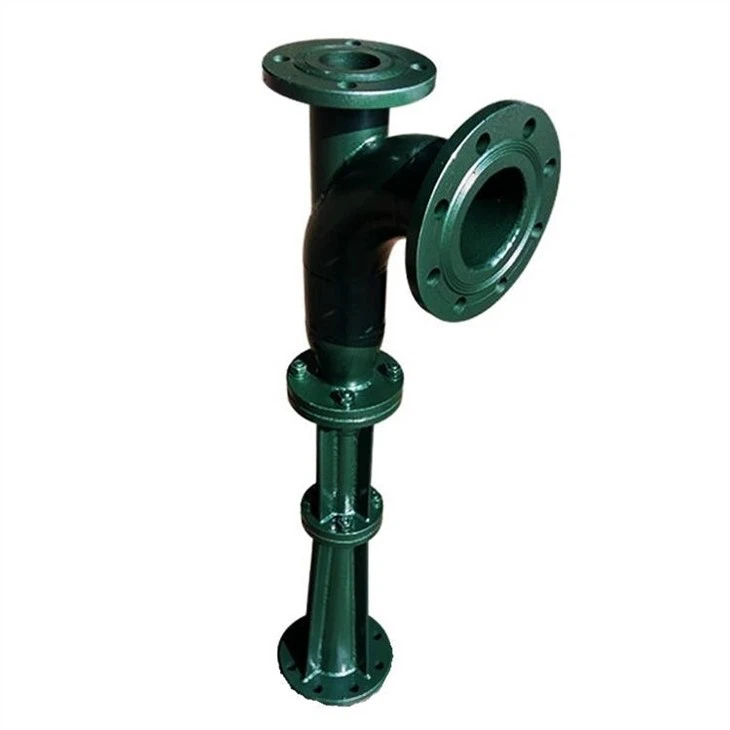

CPT type and CPJ type jet pump are new products of CP type jet pump. CPT is vertical to the axis of the pump body and the pump, while for CPJ ejector the suction inlet, outlet and jet nozzle are on the same axis with high efficiently. Working water pipe is bent as J type, both of the two kind of pump can work continuously and stably and easy installation

Rated flow：0-200m³/h

Discharge pressure：3-20m

Suction height：2-7m

Working pressure：0.3-1.4MPa

Water consumption：3.6-1750m³/h

Instruction for the model code: CPJ (T)10-0.7

CP—— water Jet pump

10—— Capacity is 10m3/h

0.7—— Outlet pressure is 0.7Mpa

T——vertical type

J——working water pipe style

Specification of CPJ ship drainage ejector

Size	rated flow m3/h	Working water pressure MPa	Discharge pressure MPa	Net on the suction height m	The water consumption of work m3/h	The original model no.
CPT5-0.3-0.05	5	0.3	0.05	4	6	CP5-0.3T
CPT10-0.3-0.05	10	0.3	0.05	4	12	CP10-0.3T
CPT15-0.3-0.05	15	0.3	0.05	4	19	CP15-0.3T
CPT20-0.3-0.05	20	0.3	0.05	4	24	CP20-0.3T
CPT30-0.3-0.05	30	0.3	0.05	4	36	CP30-0.3T
CPT40-0.3-0.05	40	0.3	0.05	4	47	CP40-0.3T
CPT50-0.3-0.06	50	0.3	0.06	3	55	CP50-0.3T
CPT100-0.3-0.06	100	0.3	0.06	3	110	CP100-0.3T
CPT5-0.7-0.08	5	0.7	0.08	4	3.6	CP5-0.7T
CPT10-0.7-0.08	10	0.7	0.08	4	7	CP10-0.7T
CPT20-0.7-0.08	20	0.7	0.08	4	14	CP20-0.7T
CPT30-0.7-0.08	30	0.7	0.08	4	21	CP30-0.7T
CPT30-0.7-0.15	30	0.7	0.15	5	40	CP30/20-0.7T
CPT50-0.7-0.08	50	0.7	0.08	4	35	CP50-0.7T
CPT60-0.7-0.06	60	0.7	0.06	6	50	CP60-0.7T
CPT80-0.7-0.10	80	0.7	0.1	5	90	CP80-0.7T
CPT100-0.7-0.09	100	0.7	0.09	2	60	CP100-0.7T
CPT100-0.7-0.10	100	0.7	0.1	5	90	CP100-0.7G
CPT150-0.7-0.09	150	0.7	0.09	2	100	CP150-0.7T
CPT200-0.7-0.09	200	0.7	0.09	2	120	CP200-0.7T
CPT15-0.5-0.10	15	0.5	0.1	7	25	CP15-0.5T
CPT10-1.0-0.2	10	1	0.2	5	17	CP10-1.0T
CPT50-1.0-0.2	50	1	0.2	5	64	CP50-1.0T
CPT100-0.2-0.07	100	0.2	0.07	3	270	CP100-0.2T
CPJ10-1.2-0.25	10	1.2	0.25	5	15	CPJ40-50-65
CPJ10-1.4-0.35	10	1.4	0.35	5	17	CPJ40-50-65
CPJ10-0.65-0.20	10	0.65	0.2	5	35	CPJ50-65-80
CPJ15-0.7-0.12	15	0.7	0.12	7	28	CPJ50-80-80
CPJ30-0.8-0.12	30	0.8	0.12	3	30	CPJ50-80-80
CPJ50-0.6-0.22	50	0.6	0.22	2.5	115	CPJ100-100-125
CPJ70-0.7-0.10	70	0.7	0.1	3	60	CPJ80-100-100
CPJ80-0.7-0.17	80	0.7	0.17	5	105	CPJ100-100-125
CPJ80-0.9-0.20	80	0.9	0.2	5	115	CPJ100-125-125
CPJ100-1.0-0.20	100	1	0.2	3	110	CPJ100-125-125
CPJ120-1.0-0.20	120	1	0.2	3	130	CPJ100-150-150
CPJ130-0.9-0.30	130	0.9	0.3	5	320	CPJ125-150-150
CPJ100-0.7-0.12	100	0.7	0.12	7	150	CPJ125-150-200
CPJ130-1.0-0.30	130	1	0.3	5	250	CPJ125-200-200
CPJ200-1.1-0.30	200	1.1	0.3	5	350	CPJ125-200-200
CPJ300-1.25-0.25	300	1.25	0.25	4	400	CPJ150-200-200
CPJ300-1.15-0.25	300	1.15	0.25	5	470	CPJ150-200-250
CPJ350-1.1-0.22	350	1.1	0.22	3	370	CPJ150-200-200
CPJ170-0.25-0.10	170	0.25	0.1	5	600	CPJ200-200-250
CPJ600-1.2-0.10	600	1.2	0.1	4	340	CPJ200-250-300
CPJ250-0.3-0.15	250	0.3	0.15	4	1050	CPJ250-250-300
CPJ630-1.3-0.25	630	1.3	0.25	5	750	CPJ250-300-350
CPJ400-0.3-0.15	400	0.3	0.15	5	1750	CPJ300-300-350
