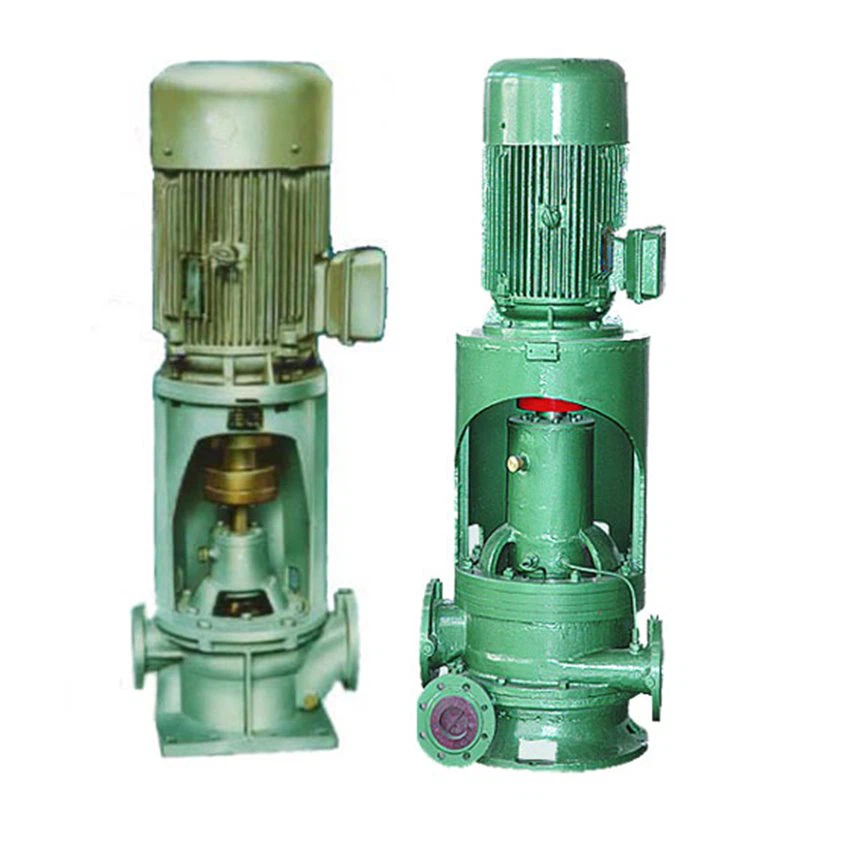

Marine Sea Water Cooling Pump
● Series: CLH
● Type: Vertical centrifugal pump
● Capacity: 1.1~1450m3/h
● Head: 3~160m
Description
Marine cooling pumps are used for marine and offshore industry. CLH Series marine pump is a good sea water cooling pump. The pump itself no self-priming function but we can equipped with our self-priming device to make it self –priming.
CLH Series marine pumps are used at cabin bottom to cool water and fire fighting. It is able to carry sea water under 80 degrees, fresh water and other non-eroding liquid.
CLH marine pump is also applied in all kinds of shipping and warship for ballast pump, bilge pump, coolant pump and drainage pump. It also used as necessary feed pump for seawater desalting device and various tank equipment, and the booster pump for petroleum and chemical industry pipelines, cold and hot water circulating system and high-rise building living water supply system.
Type: vertical centrifugal pump
Drive: electrical motor
Main application: fresh water, sea water
Casing: cast steel, brass, stainless steel
Shaft seal: mechanical seal
Certification: CCS, ABS, BV, RINA, DNV-GL, LR …
Specification of parts CLH vertical marine cooling pump
Z means Direct-drive structural, if the one is no Z in the model number, means that it is an indirect-drive structure. It must be droved by an intermediate coupling. It is easy to disassemble and maintain.
Model | capacity | head | motor power | speed | (NPSH)r |
m3/h | m | Kw | r/min | m | |
CLH25-25-6.5(Z) | 3 | 8 | 0.37 | 2950 | 4 |
CLH40-32-2(Z) | 5 | 45 | 3 | 4 | |
CLH40-32-2.5(Z) | 10 | 60 | 5.5 | 4 | |
CLH40-32-3(Z) | 10 | 45 | 4 | 4 | |
CLH40-32-3.5(Z) | 5 | 25 | 1.5 | 4 | |
CLH40-32-5(Z) | 10 | 25 | 2.2 | 4 | |
CLH50-32-2(Z) | 12.5 | 8 | 11 | 3 | |
CLH50-32-3(Z) | 12.5 | 65 | 7.5 | 3 | |
CLH50-32-3.5(Z) | 12.5 | 50 | 5.5 | 3 | |
CLH50-32-4.5(Z) | 12.5 | 32 | 3 | 3 | |
CLH50-32-6.5(Z) | 12.5 | 20 | 2.2 | 2.5 | |
CLH50-40-7(Z) | 20 | 25 | 4 | 4 | |
CLH50-50-4.5(Z) | 20 | 45 | 5.5 | 4 | |
CLH65-40-2.5(Z) | 25 | 110 | 22 | 3 | |
CLH65-40-3(Z) | 25 | 80 | 15 | 4 | |
CLH65-40-4(Z) | 25 | 65 | 11 | 4 | |
CLH65-40-4.5(Z) | 25 | 50 | 7.5 | 3 | |
CLH65-50-6.5(Z) | 25 | 32 | 5.5 | 3 | |
CLH65-50-8.5(Z) | 30 | 25 | 5.5 | 4 | |
CLH65-50-9(Z) | 25 | 20 | 3 | 3 | |
CLH65-65-5.5(Z) | 30 | 45 | 7.5 | 4 | |
CLH80-50-3.5 | 50 | 125 | 37 | 3 | |
CLH80-50-4 | 60 | 85 | 30 | 4 |
