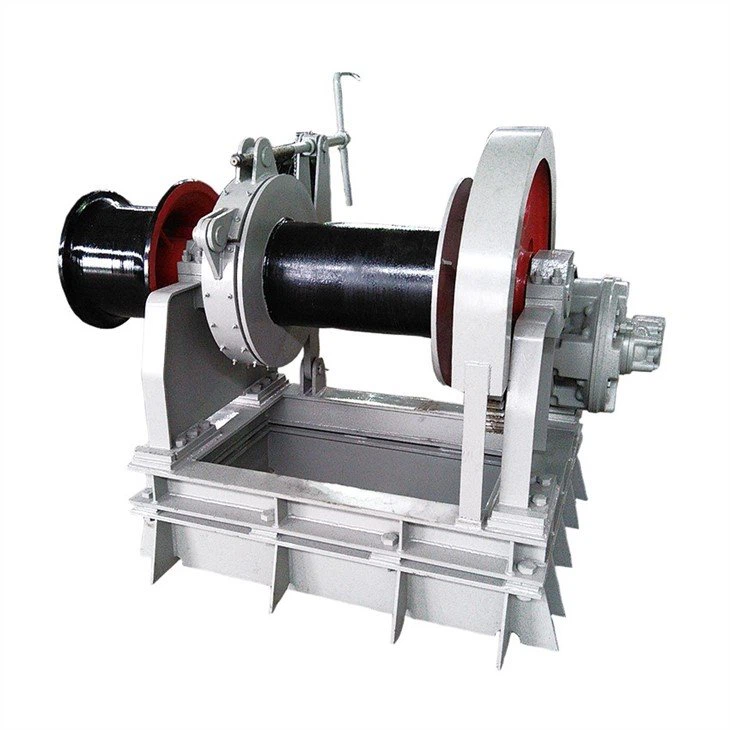

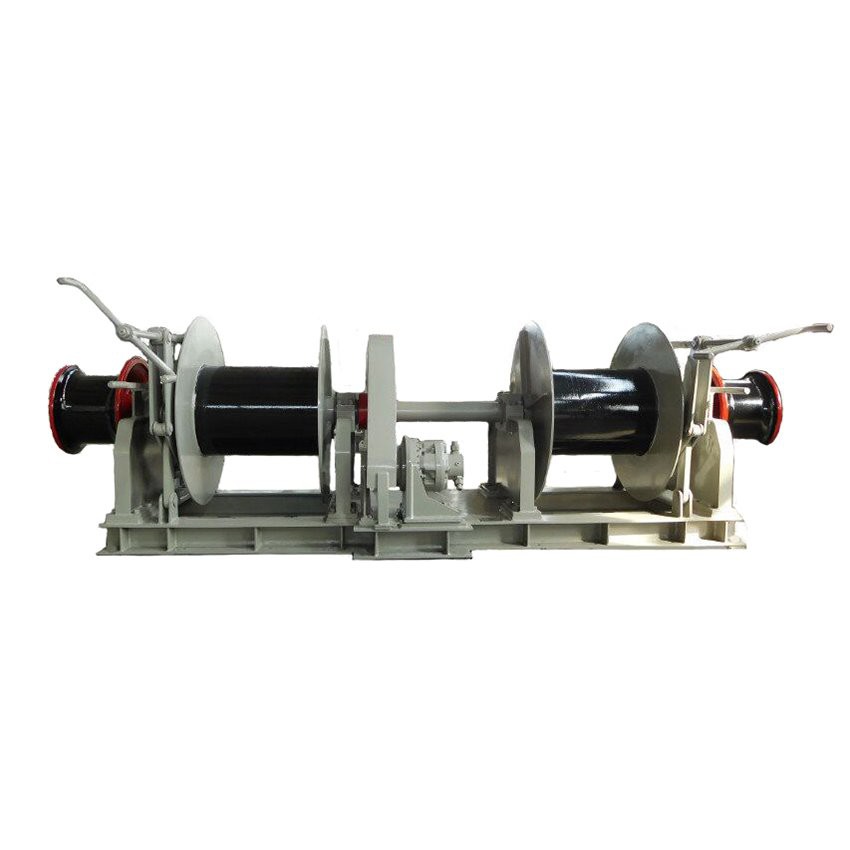

Heavy Duty Hydraulic Mooring Winch
● No. of drum: Single or double
● Driven type: Hydraulic
● Pull force: 5KN~ 600KN
● Working speed: 6m/min~ 15m/min
● Rope capacity: 100m~ 1500m
● Rope diameter: ø8mm~ ø64mm
Description
We can provide hydraulic mooring winch and electrical mooring winch, usually hydraulic winches have larger rated capacity than electric winches and the hydraulic winches is adopted on large ships more often than the electrical winches; sometimes, the mooring winch can also have combined power to drive the winch during mooring operations.
Features
Compact design & high reliability easy to install high starting& working efficiency
Reliable operation with little noise
Low maintenance relieves your anxiety
Main specification of hydraulic winch
Model | mooring drum | Motor power | ||
Rated pull | speed | drum capacity | ||
(Kn) | (m/min) | (mm×m) | (kW) | |
YB30 | 30 | 15 | 50×150 | 18.5 |
YB40 | 40 | 15 | 50×150 | 18.5 |
YB50 | 50 | 15 | 60×150 | 22 |
YB60 | 60 | 15 | 70×160 | 30 |
YB70 | 70 | 15 | 70×160 | 30 |
YB80 | 80 | 15 | 80×180 | 37 |
YB100 | 100 | 15 | 80×180 | 37 |
YB125 | 125 | 15 | 80×200 | 55 |
YB150 | 150 | 15 | 80×200 | 75 |
YB200 | 200 | 15 | 100×220 | 90 |
YB250 | 250 | 15 | 100×220 | 110 |
