6x19 FC Marine Steel Wire Rope
1. Type: Bright or Galvanized
2. Diameter: 2mm to 60mm
3. Class certification: CCS, ABS、BV、DNV-GL、LR、KR、RINA
4. Structure: various
Description

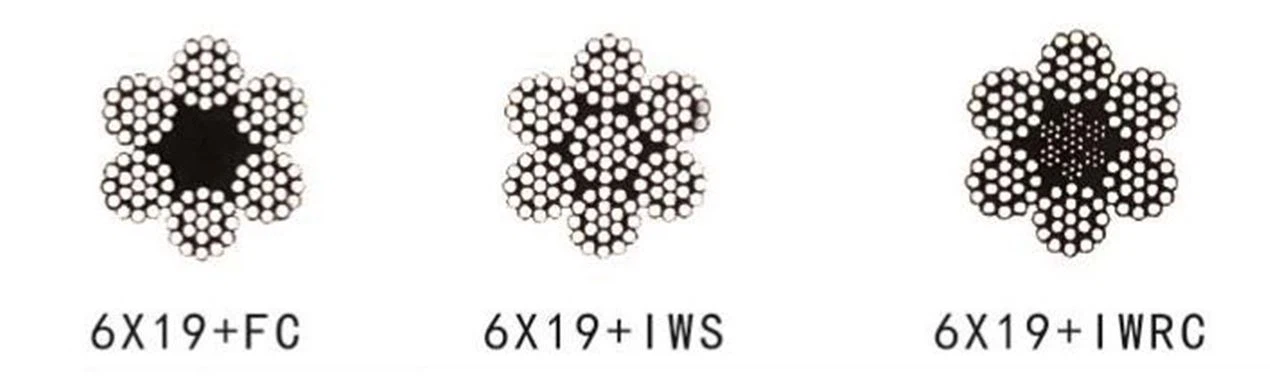

Structure 6x19 + FC marine steel wire rope means 6strand*19 wire with steel with fiber core
We can provide kinds of wire rope according to standard GB, ISO, DIN, JIS, BS etc. that widely use on ship, offshore and other industrial field.
6x19 +FC wire rope features
1. Type: Bright or Galvanized
2. Diameter: 2mm to 60mm
3. Class certification: CCS, ABS、BV、DNV-GL、LR、KR、RINA
4. Structure: various
5. Usage in marine: mooring, towing
6. Original: China
6x19 + FC wire rope Specification
| Nominal diameter | Approximate weight | Norminal T/S （N/mm2） | |||||||||
| 1570 | 1670 | 1770 | 1870 | ||||||||
| mm | Inch | Kg/100m | Min B/L(KN) | ||||||||
| FC | IWR | FC | IWR | FC | IWR | FC | IWR | FC | IWR | ||
| 6 | 1/4 | 12.5 | 13.7 | 17.3 | 18.7 | 18.4 | 19.9 | 19.5 | 21.1 | 20.6 | 22.3 |
| 7 | 9/32 | 17 | 18.7 | 23.6 | 25.5 | 25.1 | 27.1 | 26.6 | 28.7 | 28.1 | 30.4 |
| 8 | 5/6 | 22.1 | 24.4 | 30.8 | 33.3 | 32.8 | 35.4 | 34.7 | 37.6 | 36.7 | 39.7 |
| 9 | 3/8 | 28 | 30.9 | 39 | 42.2 | 41.5 | 44.9 | 44 | 47.5 | 46.5 | 50.2 |
| 10 | 13/32 | 34.6 | 38.1 | 48.1 | 52.1 | 51.2 | 55.4 | 54.3 | 58.7 | 57.4 | 62 |
| 11 | 7/16 | 41.9 | 46.1 | 58.3 | 63 | 62 | 67 | 65.7 | 71.1 | 69.4 | 75.1 |
| 12 | 1/2 | 49.8 | 54.9 | 69.4 | 75 | 73.8 | 79.8 | 78.2 | 84.6 | 82.6 | 89.4 |
| 13 | 1/2 | 58.5 | 64.4 | 81.4 | 88 | 86.6 | 93.7 | 91.8 | 99.3 | 97 | 104 |
| 14 | 9/16 | 67.8 | 74.7 | 94.4 | 102 | 100 | 108 | 106 | 115 | 112 | 121 |
| 16 | 5/8 | 88.6 | 97.5 | 123 | 133 | 131 | 141 | 139 | 150 | 146 | 158 |
| 18 | 11/16 | 112 | 123 | 156 | 168 | 166 | 179 | 176 | 190 | 186 | 201 |
| 20 | 13/16 | 138 | 152 | 192 | 208 | 205 | 221 | 217 | 235 | 229 | 248 |
| 22 | 7/8 | 167 | 184 | 233 | 252 | 248 | 268 | 263 | 284 | 277 | 300 |
| 24 | 15/16 | 199 | 219 | 277 | 300 | 295 | 319 | 312 | 338 | 330 | 357 |
| 26 | 1 | 234 | 258 | 325 | 352 | 346 | 374 | 367 | 397 | 388 | 419 |
| 28 | 1（1/8） | 271 | 299 | 377 | 408 | 401 | 434 | 426 | 460 | 450 | 486 |
| 30 | 1（3/16） | 311 | 343 | 433 | 469 | 461 | 498 | 489 | 528 | 516 | 558 |
| 32 | 1（1/14） | 354 | 390 | 493 | 533 | 524 | 567.0.0 | 556 | 601 | 587 | 635 |
| 34 | 1(5/6) | 400 | 440 | 557 | 602 | 592 | 640 | 628 | 679 | 663 | 717 |
| 36 | 1（2/5） | 448 | 494 | 624 | 675 | 664 | 718 | 704 | 761 | 744 | 804 |
| 38 | 1（1/2） | 500 | 550 | 695 | 752 | 740 | 800 | 784 | 848 | 828 | 896 |
| 40 | 1-19/32 | 554 | 610 | 771 | 833 | 820 | 887 | 869 | 840 | 918 | 993 |
