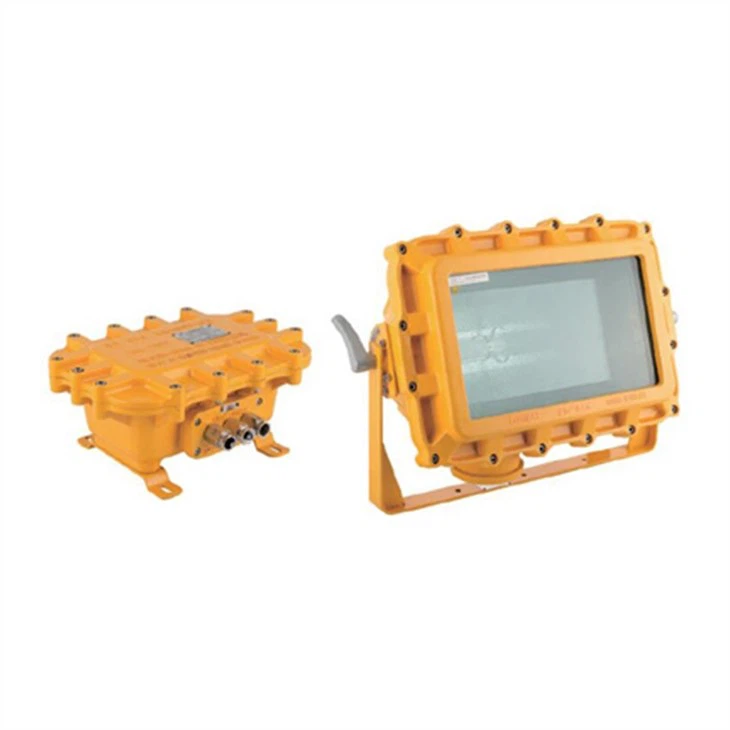

1000W Explosion Proof Spot Light

● Series: explosion proof light CFT3
● Voltage: 220V
● Illuminant: HPS lamp, metal halide lamp
● Power: 400W, 1000W

Description

Explosion proof spot light CFT3 is applied to illumination of explosive gas place zone 1 or zone 2. It can also use LED as illuminant source.

Feature

1. The light body and ballast box is divided-body design, it has the faction of compact structure and ensure explosion proof.

2. The light can adjust vertical ±45°

3. The body adopt high intensity aluminum alloy material, it has the ability of high collision proof and shock proof.

4. The transparent part adopt aluminum alloy, it can bear high machinery strength and temperature change.

5. The reflector adopt high purity aluminum plate, the surface through anodizing treatment and through exact light distribution design good effect of reactor.

6. Pay attention EXB1 is CFT3 special electric box, CFT3 ex-proof spot light and EXB1 ballast box must match to use.

Parameter

Model	CFT3				EXB1
Voltage	220V/50Hz 220v/60Hz				110V/220V
Power	400W	400W	1000W	1000W	Max 1000W
Illuminant	High pressure sodium lamp	Metal halide lamp	High pressure sodium lamp	Metal halide lamp
Explosion-proof mark	Exde II BT4	Exde II BT4	Exde II BT3	Exde II BT3	Exde II BT5
Luminous flux	47000	36000	120000	120000
Lamp holder	E40
Protection class	IP56
Cable outside Diameter	Φ11-Φ13
Weight	49.5kg(CFT13),22kg(EXB1)
