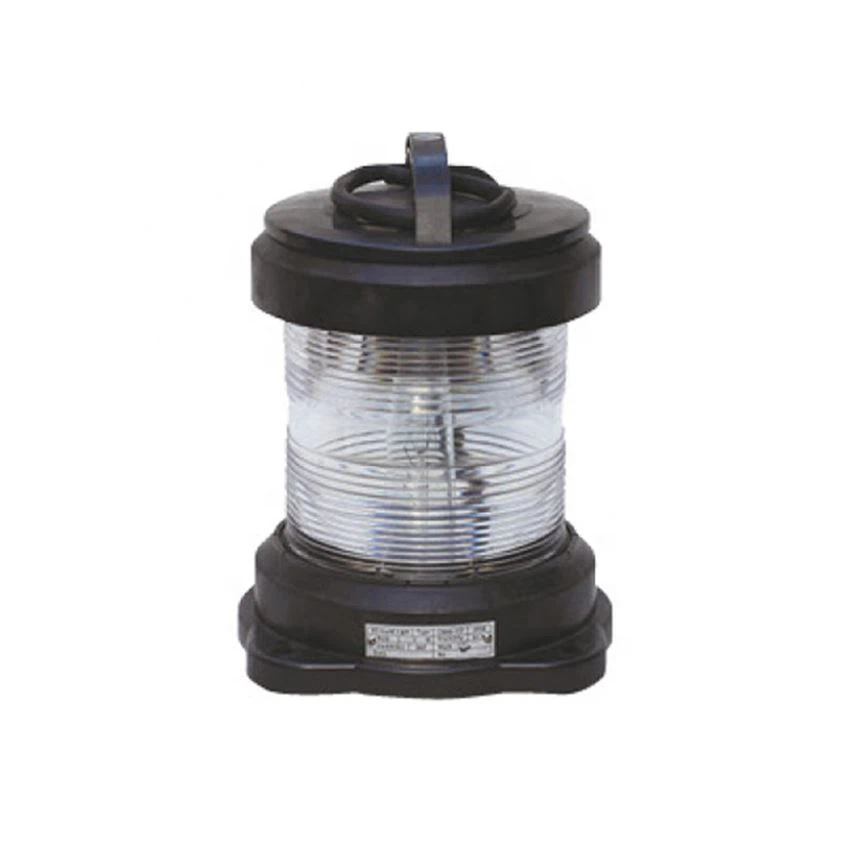

LED Flashing Signal Light

LED Flashing Signal Light

● Series: signal light CXH14
● Illuminant: LED
● Power: 8W
● Voltage: AC220v, DC24V, DC12V

Description

Ship flash signal light


The scope of application

Applied to the ships as lamp signal when night navigation


Products characteristic

1. The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.

2. The signal lights have the whole seal structure, it is water Proof under the bad environment.

3. The signal lights adopt the signal LED light source of ship rule and regulation, it is more energy saving and long life-span.it con replace bulb when open up river.

4. The signal lights can work normally under the temperature -30℃~50℃


Adopt standard

1. Conform to THE INTERNATIONAL REGULATIONS FOR PRENVEMTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS

2. Conform to the international standard IEC.

3. Conform to the standard of manner electric signal light's technical condition GB/T 3028-1995.

4. Approval by CCS(China Classification Society), certificate number 00515Q20619ROM


Rated voltage

AC220V 50Hz/60Hz,DC24V, DC12V

Power

8W

Illuminant

LED(red、green、white)

Visibility

3n.m

Protection class

IP56

Cable outside Diameter

Φ12-Φ13

Weight

3.2Kg

Installation way

Fixed

Flash frequency

150Beats/min


Flash bulb

flash bulb
