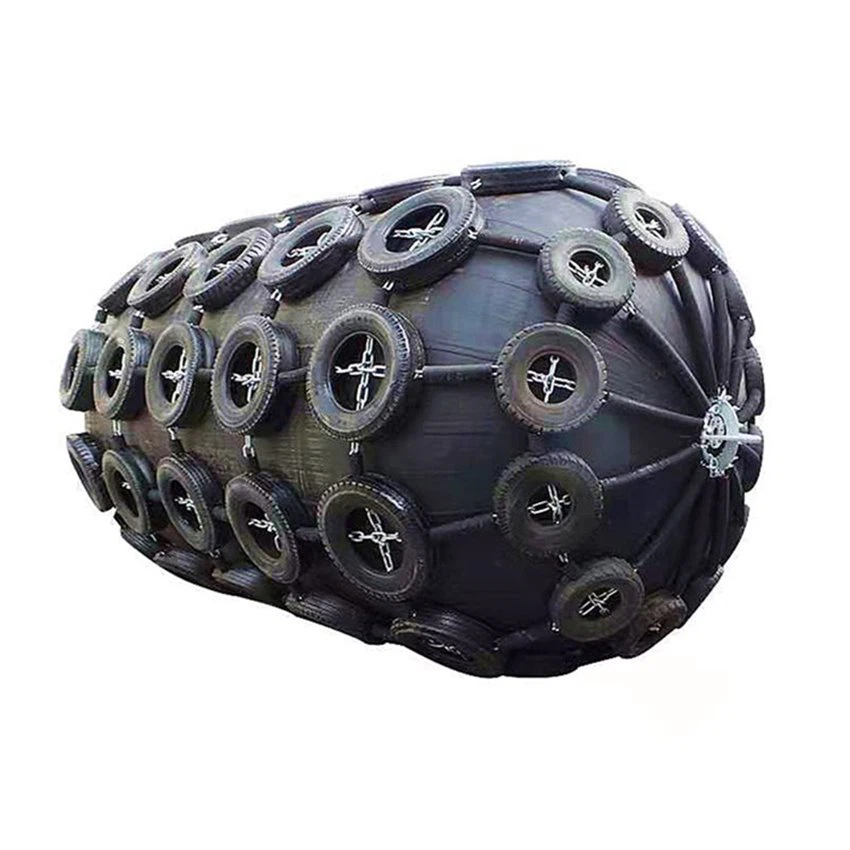

50Kpa 80Kpa Pneumatic Yokohama Rubber Fender
● Type: Pneumatic rubber fender
● Material: nature rubber
● Initial pressure: 50Kpa or 80Kpa
● Origin: China
Description
Pneumatic rubber fender initial internal pressure is 50Kpa or 80Kpa, it is also known as the Yokohama type Fender, Inflatable fender, Floating Fender, Dock Fender, made by rubber & multi layer of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today.
Features
Material: natural rubber and rubber-dipped tire fabric
Standard: Fully compliant with ISO 17357 and PIANC 2014 standards
Color: black and grey
Optional: equipped with tyres or without
Advantage: Easy and inexpensive to install with only a guy rope or chain required
Application: ship-to-ship (STS) and ship to dock/jetties (STD/J) projects
Class Certification: CCS, ABS, BV, LR etc.
Pneumatic rubber fender technical data sheet
Size | Initial Internal Pressure | Weight | Initial Internal Pressure | Weight | ||
50Kpa | ±10% | 80Kpa | ±10% | |||
D*L(mm) | Reaction force at GEA (KN) | Guaranteed energy absorption (KJ) | Kg | Reaction force at GEA(KN) | Guaranteed energy absorption (KJ) | Kg |
500*1000 | 64 | 6 | 25 | 83 | 8 | 25 |
600*1000 | 74 | 8 | 32 | 96 | 11 | 32 |
700*1500 | 137 | 17 | 50 | 178 | 24 | 50 |
1000*1500 | 182 | 32 | 80 | 235 | 44 | 80 |
1000*2000 | 257 | 45 | 100 | 335 | 63 | 125 |
1200*2000 | 297 | 63 | 120 | 386 | 86 | 165 |
1350*2500 | 427 | 102 | 165 | 554 | 140 | 226 |
1500*3000 | 597 | 153 | 315 | 751 | 211 | 370 |
1700*3000 | 639 | 191 | 405 | 830 | 263 | 436 |
2000*3500 | 875 | 308 | 590 | 1138 | 424 | 632 |
2500*4000 | 1381 | 663 | 1050 | 1815 | 925 | 1110 |
2500*5500 | 2019 | 943 | 1333 | 2653 | 1317 | 1410 |
3000*5000 | 2104 | 1210 | 1880 | 2709 | 1571 | 2155 |
3000*6000 | 2583 | 1485 | 2160 | 3292 | 1888 | 2470 |
3300*4500 | 1884 | 1175 | 2020 | 2476 | 1640 | 2300 |
3300*6500 | 3015 | 1814 | 2700 | 3961 | 2532 | 3080 |
Pneumatic rubber fender use matters needing attention
a. Pneumatic pressure control in±5% of the rated pressure
b. Test pressure normally, add pressure in a timely manner
c. Avoid contact with sharp objects
d. When Long time not need, should wash to dry, filled with right amount of compressed air, placed in a cool dry ventilated place.
e. Storage place away from heat, acid and alkali, oil and grease
f. When store, shall not be folded and piled up

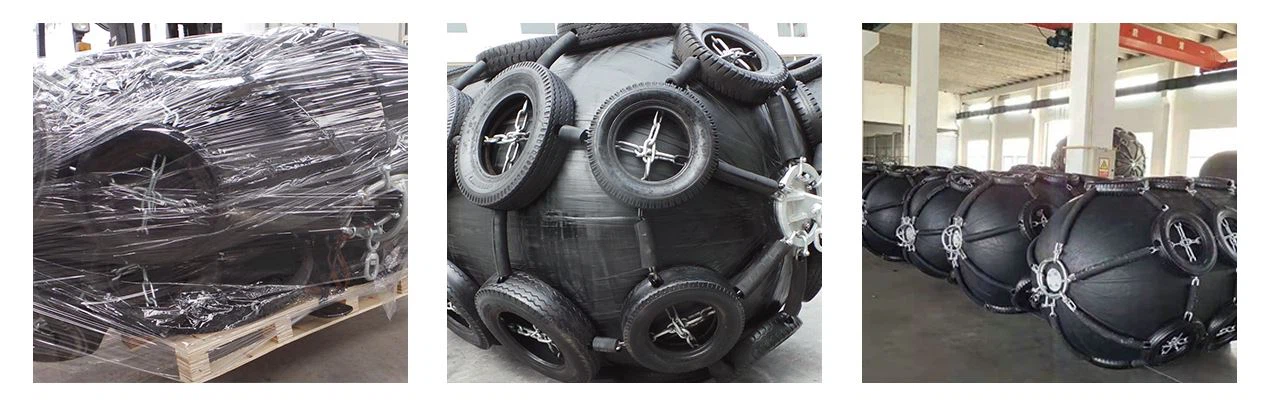

Packing of the Yokohama pneumatic rubber fender
