Dock Super Arch Rubber Fender
● Low reaction force
● Higher energy absorption
● Reasonable structure
● Long service life
Description
Super arch (SA) rubber fender is a replace product for type A rubber fender, in front part can equipped front panel or UHMW-PE face pad to reduce surface pressure and vessel friction factor, and lower the shear strength while vessel berthing.
Features
1. Big rated compression, high energy absorb, low reaction force.
2. Its structure reasonable and utility long life.
3. Firm in installation and convenient in maintenance.
Part of data for super arch rubber fender
Model | B | b | c | d | H | h | s |
SA-A200H | 400 | 320 | 145 | 128 | 200 | 30 | 260 |
SA-A250H | 500 | 410 | 175 | 160 | 250 | 33 | 300 |
SA-A300H | 600 | 490 | 225 | 196 | 300 | 33 | 300 |
SA-A400H | 800 | 670 | 300 | 260 | 400 | 40 | 360 |
SA-A500H | 1000 | 840 | 375 | 325 | 500 | 45 | 420 |
SA-A600H | 1200 | 1010 | 450 | 390 | 600 | 54 | 480 |
SA-A800H | 1600 | 1340 | 600 | 520 | 800 | 72 | 640 |
SA-A1000H | 2000 | 1680 | 750 | 650 | 1000 | 90 | 640 |
Installation of SA type rubber fender

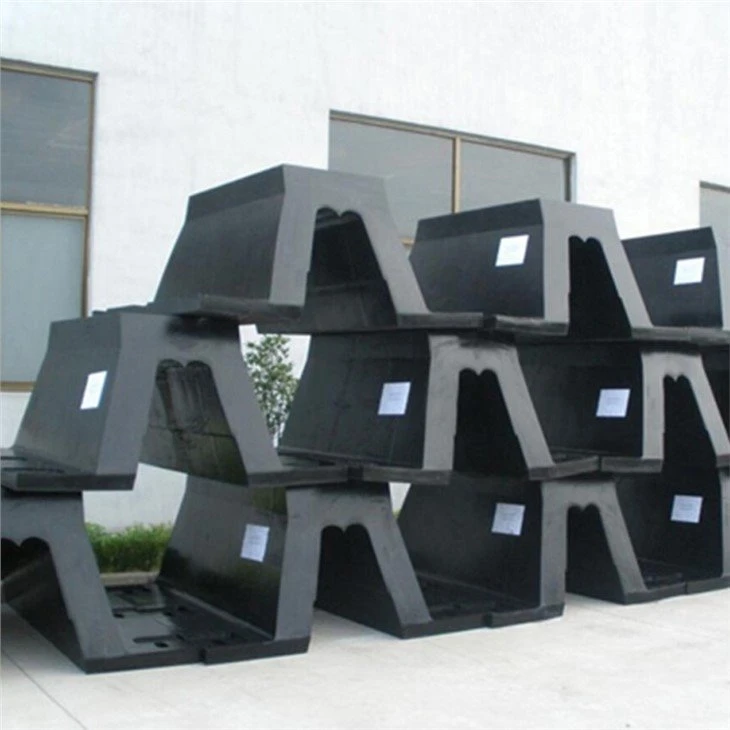

Site view of super arch rubber fender
