River Sand And Gravel Dredge Pump

● Series: WN
● Flow: to 25000 m3/h
● Head: to 80m
● Horizontal structure

Description

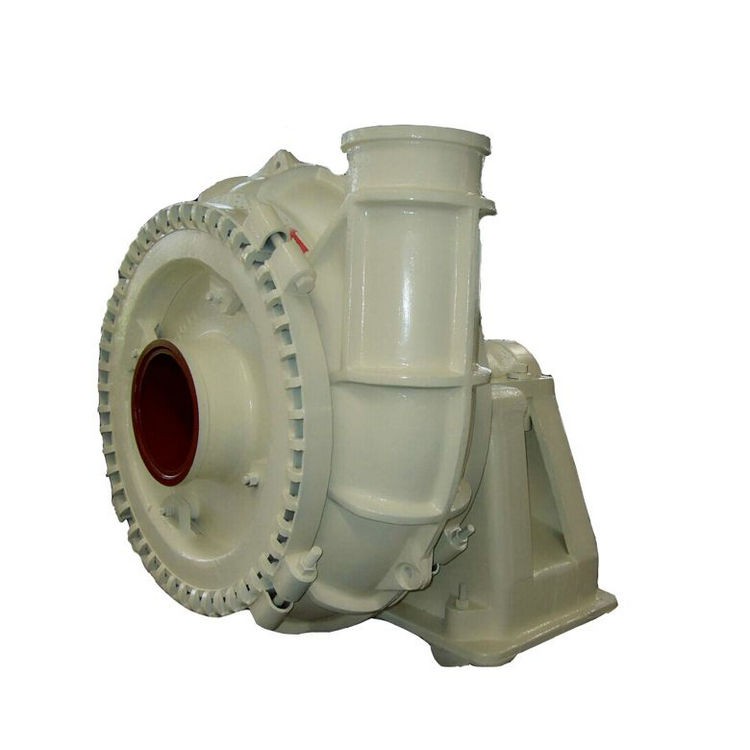

River sand and gravel dredge pump is a single stage, single suction, cantilever, horizontal structure pump. The dredging pump structure is divided into two kinds of structures according to the size of pressure discharging: single and double pump casing.

WN Series Dredge Pumps can be also integrated with the gearbox that mean the pump and gear box share one common shaft. So It doesn’t need the pump bearing assembly and frame, In this way, Not only save space, but also reduce cost and breakdown ratio, Let the dredge pump give play to maximum effectiveness.

Application and feature

1. WN Sand pump mainly used for transferring the high abrasive materials which cannot be transferred because of big particles.

2. Used in dredger, sewage, mineral processing and Metal smelting slag.

3. WN pump is high head type. This model pump is single case, wide channel. High chrome material based on the wet end parts.

4. The discharge can be installed in 360 degree in any direction, easy to install and use, good cavitation performance, anti-abrasion, etc.

Parameter

D refers to mounted under deck

Model	Flow Q	head	speed	η(%)	NPSHr(m)	outlet dia./inlet dia.	Max.dia. Of the medium
	(m3/h)	H(m)	n(r/min)	η(%)	NPSHr(m)	(mm)	(mm)
200WND	600-800	20-40	700-900	60-65	4.5	200/250	178
200WN	750-1000	40-65	700-850	70-72	4	200/250	180
250WND	950-1100	20-40	500-700	65-70	4	250/300	220
250WN	1100-1300	40-65	500-650	70-74	4	250/350	144
300WND	1500-1800	20-40	400-600	65-68	4	300/350	244
300WN	1800-2200	40-65	400-550	74-78	4	300/450	244
350WN	2600-3000	40-65	400-550	74-78	4.5	350/450	245
400WN	2800-3200	20-40	400-550	74-78	4.5	400/450	250
450WN	3200-3850	40-67	350-500	76-80	4.5	450/600	354
500WND	3600-4200	20-40	220-320	72-75	4.8	500/600	330
500WN	4500-5500	40-65	350-450	78-80	4.8	500/650	250
600WN	5000-9000	55-80	280-420	84-85	6	600/660	220
700WN	8000-12000	60-85	280-380	83-85	6	700/760	280
900WN	12000-19000	50-75	280-330	85-87	6	900/960	320
1000WN	16000-25000	23-76	181-290	85-87	6	1000/1200	350
