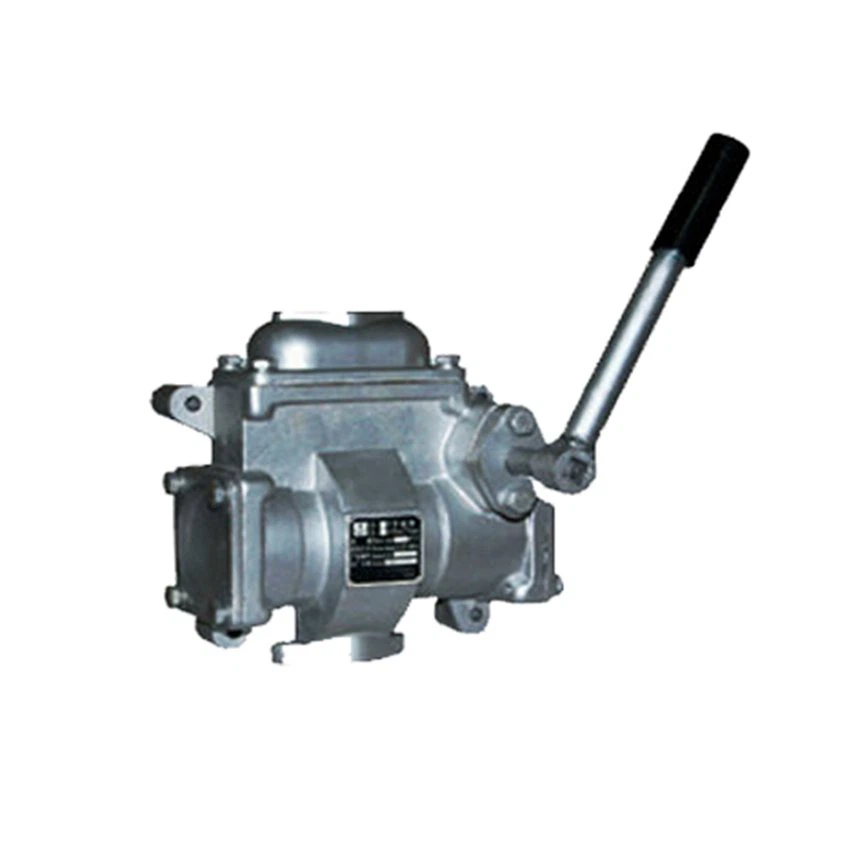

Marine Hand Bilge Pump
● Series: CS
● Type: Self –priming piston pump
● Application: oil, bilge, water
● Advantage: easy install
Description
CS series hand pump is marine piston pumps for remove ship bilge water.
Bilge hand Pump application
It applicate for freshwater, bilge water, sewage, fuel oil, lubricant oil, and water of no corrosively
Applicate for liquid that do not exceed 60℃
CS hand bilge pump Material:
Pump casing/cover and Piston: aluminum alloy;
Connection rod, shaft and valve: stainless steel.
Valve seat: brass
Model Explanation
CS-20Y/H
CS-hand pump
20-inlet and outlet diameter is 20
“Y" means cylinder sleeve is iron, it is suitable for lube, fuel oil, fresh water, etc.
"H" means cylinder sleeve is cooper alloy, it is suitable for sea water, drink water
Performance parameter
Product Name | Marine Hand Pump | |||||
Model | Capacity | Pressure head | Time | Suction head | Piston stroke kw | Weight |
m3/h | m | once/min | m | kg | ||
CS-20 | 20 | 20-25 | 50 | 5 | 68 | 1.45 |
CS-20Y/H | 20 | 25 | 50 | 6 | 68 | 0.33 |
CS-25Y/H | 32 | 25 | 50 | 6 | 80 | 0.33 |
CS-32 | 40 | 20-25 | 50 | 5 | 90 | 0.33 |
CS-32Y/H | 48 | 25 | 50 | 6 | 90 | 0.33 |
CS-40Y/H | 65 | 25 | 50 | 6 | 90 | 0.36 |
CS hand pump Usage and maintenance
a. Clean and check the pump before installation.
b. Please don’t use the thin-wall plastic hose, to avoid suction difficulty in operation.
c. When liquid temp is higher than 70 C degree, a flooded head is requested.
d. Drain the pump completely if the temp is below zero C degree, to prevent any frost.
e. Check the pump piston ring, valve and valve seat every three month. If the wear is too big, it should be replaced
f. Coat the moving component with a protective oil layer if pump is not used within three months.
