Butt Weld 90 Degree Elbow

Butt Weld 90 degree Elbow is a common used pipe fitting on ship. A butt-weld fitting is a weldable pipe fitting that allows for change of direction of flow, to branch off, reduce pipe size or attach auxiliary equipment. Butt weld elbow are available in both welded and seamless configuration

Butt weld 90 degree elbows are used in systems where it is desirable to avoid a hard bend in flow direction. They can be used to redirect your pipeline horizontally, vertically, or a combination of both using several elbows in line.

Pipe elbows are mainly used for connecting two pipes or tubes, allowing a change of direction. We can provide short radius elbows and long radius elbows. Usually, pipe elbows are made of carbon steels, alloy steel, stainless steel or PVC, and more. They have high strength, good toughness and resistance to corrosion. Our have DIN standard, JIS Standard, American Standard ect.

Specifications for pipe Butt Weld 90 degree Elbow

We can provide Elbow range

● Standard------ASME B16.9-2007, ASME B16.25-2007, ASME B16.5-2007, EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008, DIN2605-1-1992 DIN2605-2-1995

JIS B2311-2009 JIS B2312-2009 JIS B2313-2009, GB/T12459-2005 GB/T13401-2005 GB/T10752-2005

● Size---- Seamless:1/2"～24", DN15～DN600 Seam: 4"～48", DN150～DN1900

● Thickness------sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s Max. thickness: 150mm

● Material: Carbon steel , Alloy steel, stainless steel

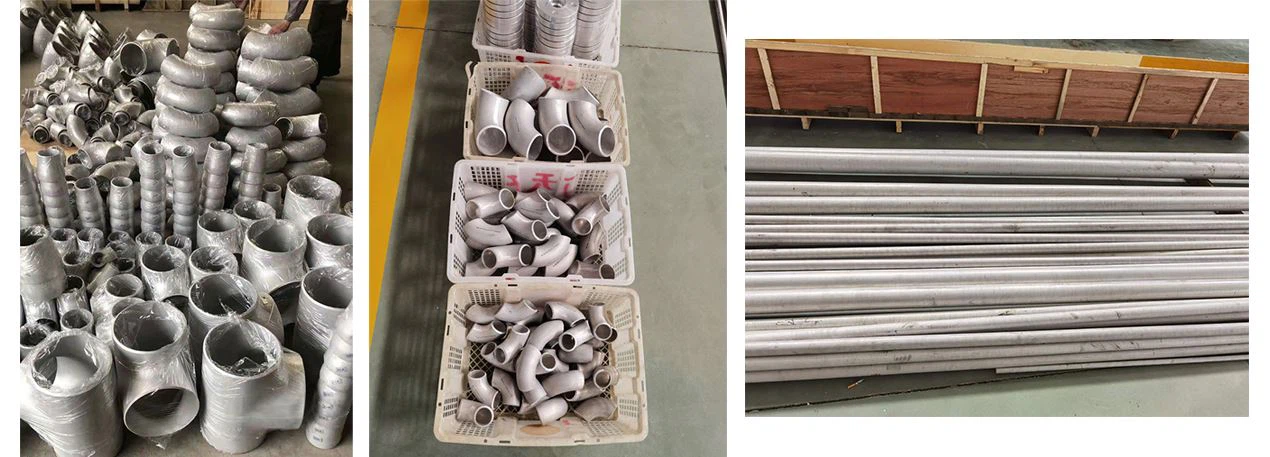

Some of the pipe fittings we provide to client

1. Elbow, tee, flange and pipe for a Philippines shipyard, Aluminum 5083 material

2. Stainless steel Butte welded elbow and flange for customer
