500kn Container Twistlock Foundation Socket

● Series: container fixed fittings
● MBL: 500KN
● Welded on deck
● Combination with twistlock

Description

The 500Kn container twist lock socket or foundation are raised ISO deck socket gets welded on top of the deck of the vessel. Those foundations are used with ISO bottom twistlocks to secure the containers to the deck of the vessel.

Specifications of twist lock socket and foundation

Description	Model	Marterial	M.B.L	MBL Shear	MBL compression	Finish
Single Flush ISO Socket	FS-1	Cast& high tensile steel	500KN	420Kn	2000Kn	primer or hot dip galanized
Double flush ISO Socket (transversal)	FS-2
Double flush ISO Socket(longitude)	FS-3
Quadruple Flush Socket	FS-4
Single Raised Socket	RF-1
Double raised ISO socket (transversal)	RF-2
double raised ISO socket (longitudinal)	RF-3

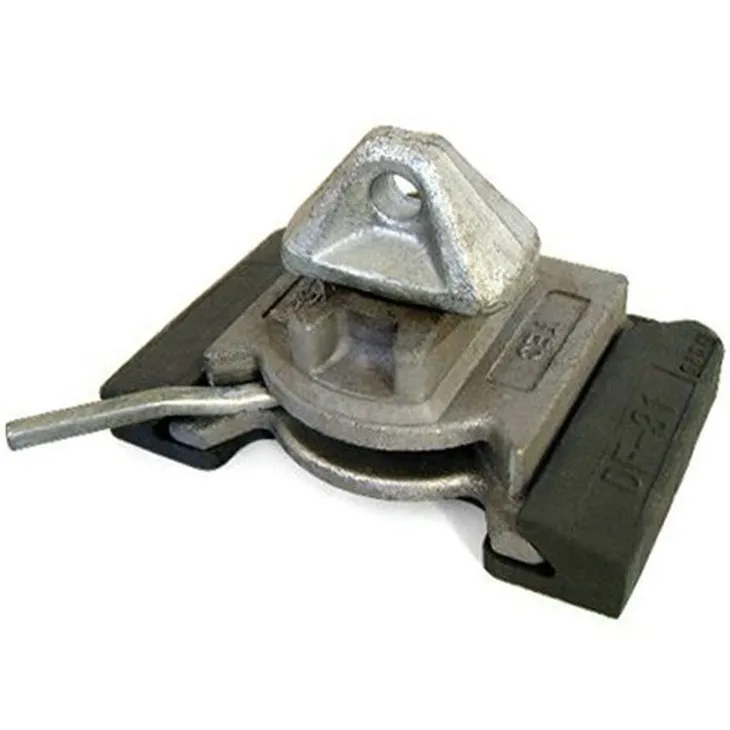

Single dovetail twistlock foundation 45°/55°	DF-45-1/DF-55-1
Double dovetail twist lock foundation45°/55°	DF-45-2/DF-55-2
Certification	All items are approved by major classification societies
Remark	Other material and Finish according to your request
