D Ring With Strap For Container Fixing
● Series: container fixed fittings
● Material: Forged & high tensile steel
● Welded to the deck or hatch cover.
● MBL: 5T,10T,20T,30T,36T,50T,60T
Description
D ring with strap is used for container lashing for roro ship or as an alternative fixing point for lasher turnbuckles on container ships. It is metallic parts welded on deck.
Specification
No. | Item | Drawing |
1 | D-rings & clamps DR-1 | |
2 | D-rings & clamps DR-2 | |
3 | Flush D-ring DR-3 | |

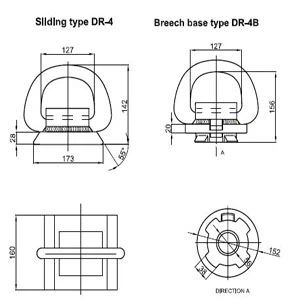

4 | Breech base D-rings DR-4 | |
5 | Removable D-rings DR-5 | |
Classification: all items are proved by major classification societies | ||
Materials: Forged & high tensile steel | ||
Surface treatment: hot dip galvanized | ||
Finish: shop primer | ||
Remarks: Other lengths, materials and finish upon request | ||
