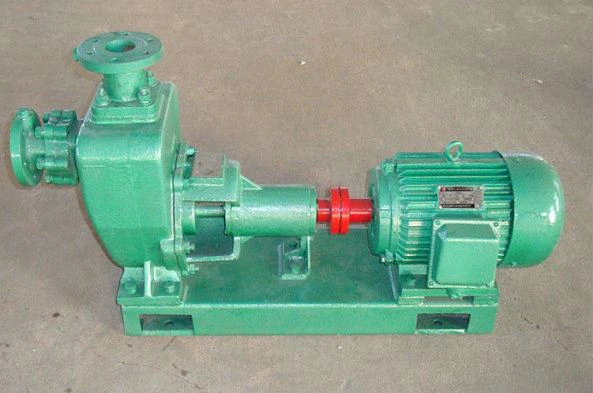

CWZ Horizontal Bilge Ballast Pump

● Series: CWZ
● Type:Self –priming centrifugal pump
● Application: bilge, water
● Advantage: good self-priming performance

Send Inquiry

Description

CWZ series pump application

CWZ pump is a single stage, single suction, end-suction marine centrifugal pump.

This series of pump has built-in self-priming device with good performance of self-priming (without additional self-priming equipment) and works as marine cooling pump, sanitary pump, fire pump, G/S(general service pump), bilge ballast pump

CWZ series pump application

Applicable for transfer seawater and fresh water temperature no more than 85℃

Material

1. pump casing/casing cover/drain cover/suction cover: bronze(sea water) or cast iron(fresh water)

2. Impeller/wear ring: bronze,

3. shaft, shaft sleeve and key: stainless steel

Structure

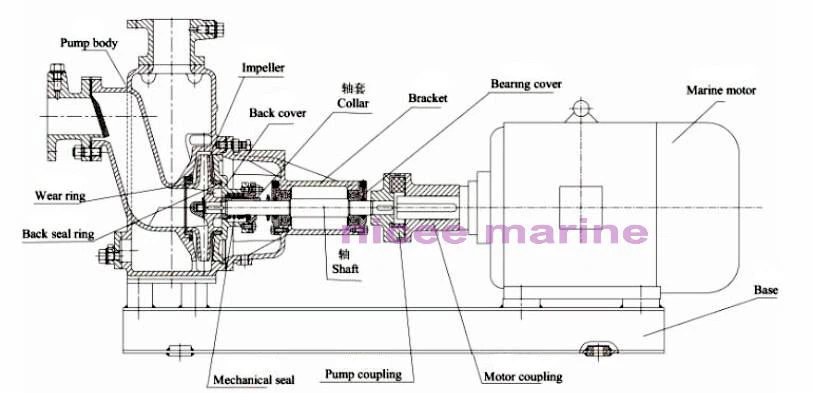

marine centrifugal pump CWZ marine bilge pump structure

1. Shaft seal: mechanical seal, material: SIC(silicon carbide),hard alloy and ceramics, double face mechanical seal for big power pump.

2. Priming: built-in self-priming casing and cover, with check valve in the discharge pipe, suction head about 4-5meter

3. Coupling: flexible coupling type, material in carbon steel, or direct coupled as optional.

4. Bearing: motor side, two enclosed antifriction bearing, lubricated by grease; pump side, two deep groove rolling ball bearing, lubricated by oil in oil bath.

5. Accessory: motor terminal box, lifting hooks, grease nipple, oil cup, air vent plug, drain plug, gauge connection plug and so on.

Main parameter

Series Name	CWZ
Product Name	Marine horizontal self-priming centrifugal pump
Feature	Well fixed and beautifully shaped and have high self-priming function, can be installed and used easily
Capacity	8-550 m³/h
Head	15-120 m
Speed	2900 /3450 r/min
Motor power	315KW (Max.)
Application	Bilge, ballast, fire control, cooling, sanitary
Temperature	Max.85℃
Certification	CCS, ABS, BV, etc.
