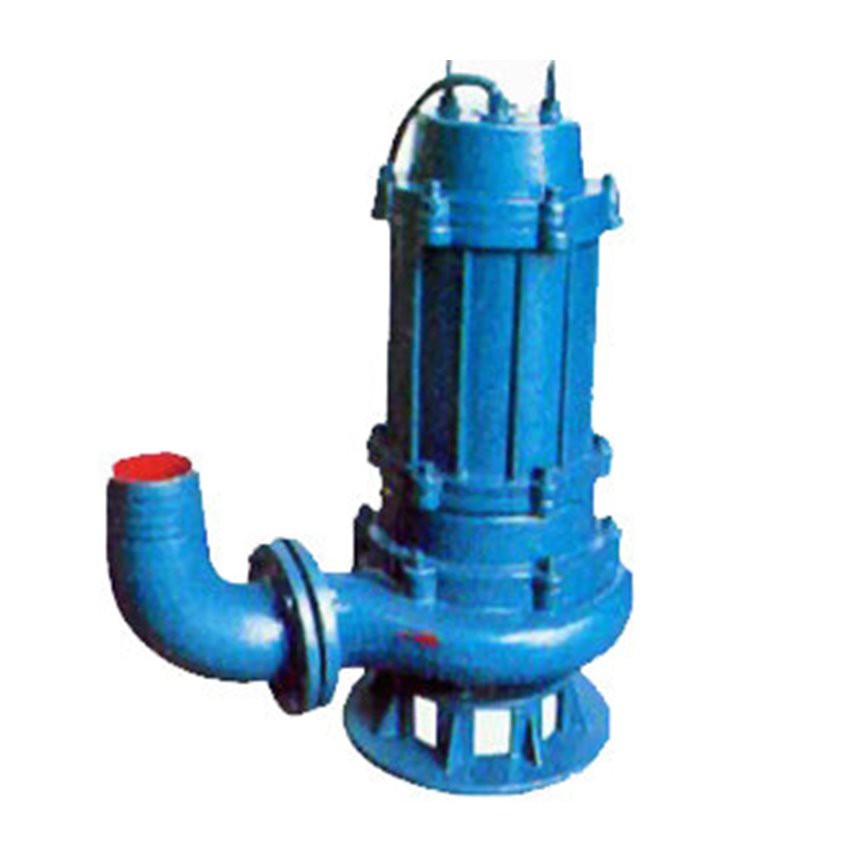

Marine Submersible Sewage Pump
● Series: CQX
● Type: submersible pump
● Capacity: 10 to 630m3/h
● Head: 10 to 40m
● Simple structure, small volume, light weight.
Description
CQX Series submersible pump is mainly used for ships emergency rescue, remove sewage, and also is used as mobile bilge pump. It has advantage of small volume, light weight, and easy to install and remove.
CQW Series submersible drainage pump is widely used in municipal, pumping stations, construction and other industries with solid and all kinds of long fiber of silt, waste water, city life sewage discharge processing, at the same time is applied to biogas digesters in rural areas, rural irrigation, water plant water supply and sewage device.
CQWF Series submersible drainage pump is suitable for crushing, grinding and filth in sewage pumping, such as paper, food residue, sludge, sludge dry stool, fish etc.
Specification of CQX(W) submersible sewage pump
No. | Model | capacity | head | Efficiency % | power | speed | voltage | dia. | vicosity |
m3/h | m | kW | r/min | V | Φmm | Φmm | |||
1 | CQX（W）10-10-1 | 10 | 10 | 44 | 1 | 2900 | 380 | 50 | 25 |
2 | CQX（W）15-7-1 | 15 | 7 | 47 | |||||
3 | CQX（W）10-15-1.5 | 10 | 15 | 44 | 1.5 | ||||
4 | CQX（W）15-10-1.5 | 15 | 10 | 47 | |||||
5 | CQX（W）25-8-1.5 | 25 | 8 | 51 | |||||
6 | CQX（W）15-20-2.2 | 15 | 20 | 47 | 2.2 | 65 | 40 | ||
7 | CQX（W）25-14-2.2 | 25 | 14 | 50 | |||||
8 | CQX（W）40-10-2.2 | 40 | 10 | 54 | |||||
9 | CQX（W）20-22-3 | 20 | 22 | 49 | 3 | ||||
10 | CQX（W）30-16-3 | 30 | 16 | 52 | |||||
11 | CQX（W）40-12-3 | 40 | 12 | 54 | |||||
12 | CQX（W）20-25-4 | 20 | 25 | 49 | 4 |
