Marine Screw Down Storm Valves

● Standard: JIS
● Pressure: 5K, 10k
● Size: DN50~DN200
● Material: cast steel

Description

Marine Screw down Storm Valves are used for controlling the medium to open and close, preventing refluence in seawater and freshwater piping.

It's Used to discharge Fresh water or waste water, and can automatically shut down and prevent the outside water flow backward side of valve.

Marine storm valve are applicable for marine pipelines of fresh water, air or gas, fuel oil, lub oil, steam at 205℃ in ship building or repair or marine platform construction.

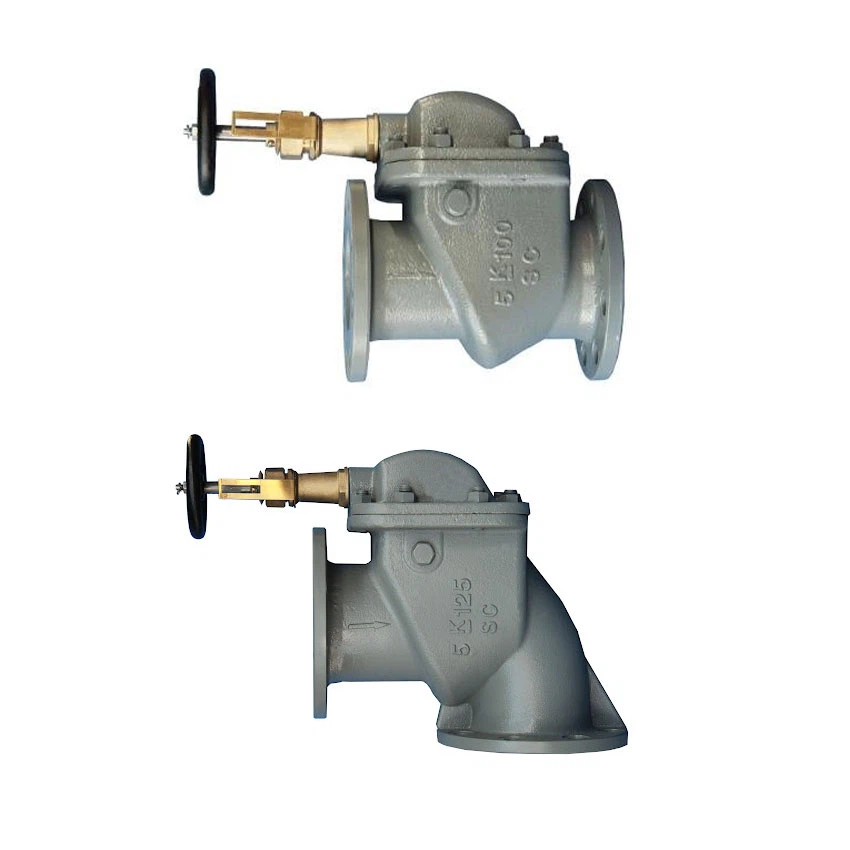

Product Name: marine cast steel storm valve F3060/F3060R 5K/10K

Design Standard: JIS F7426-1996

Flange standard: JIS B2220 5K/10K

Pressure: 5K (0.49Mpa)&10K(0.98Mpa)

Size: DN50, 65, 80, 100, 125, 150, 200

Material: cast steel body bronze or stainless steel trim

Color: original or painted in grey or customized

Specification

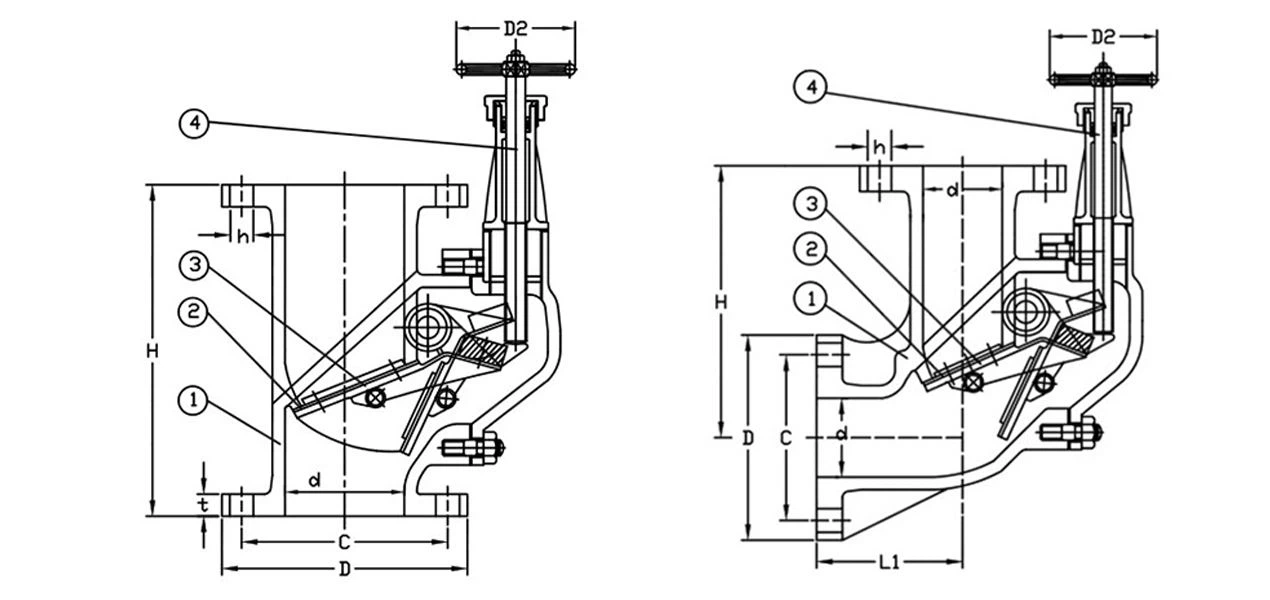

JIS F3060 10k Drawing

Marine storm valve JIS F3060 /3060R 5k

Size	Face to Face(L)		Flange dia.(D)	Pitch(C)	Hole(n×d)	t	D2
DN	3060	3060R	mm	mm	mm	mm	mm
50	210	170	130	105	4×D15	15	100
65	240	200	155	130	4×D15	15	125
80	260	220	180	145	4×D19	15	125
100	280	250	200	165	8×D19	17	125
125	330	270	235	200	8×D19	17	125
150	360	310	265	230	8×D19	19	125
200	450	400	320	280	8×D23	20	125

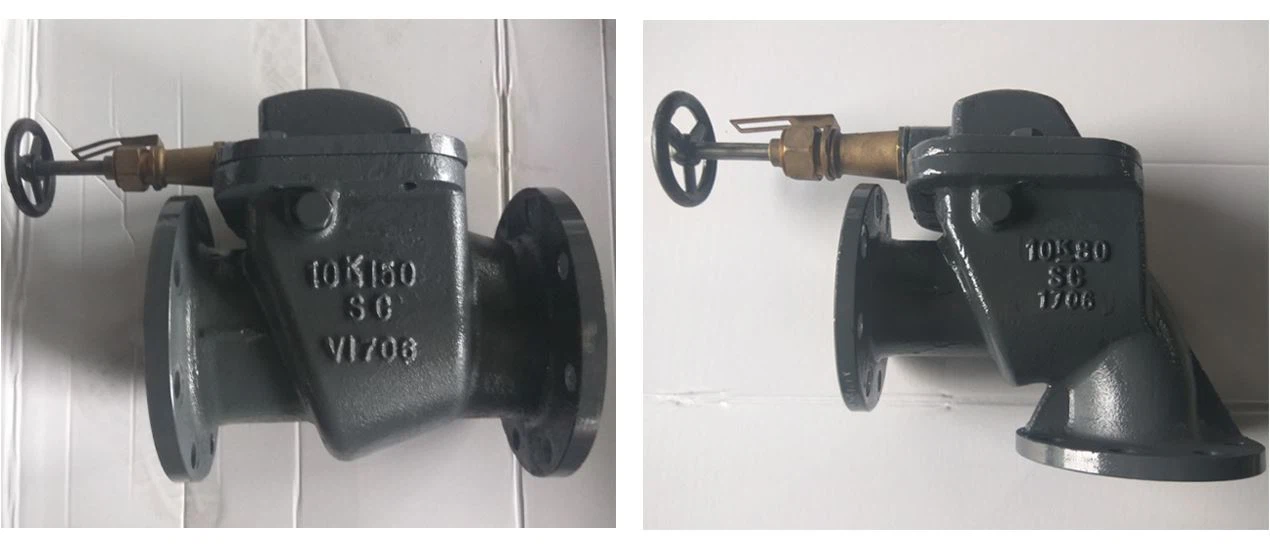

angle type storm valve

Marine storm valve JIS F3060 /3060R 10k

Size	Face to Face(L)		Flange dia.(D)	Pitch(C)	Hole(n×d)	t	D2
DN	3060	3060R	mm	mm	mm	mm	mm
50	210	170	155	120	4×D19	15	100
65	240	200	175	140	4×D19	15	100
80	260	220	185	150	8×D19	15	125
100	280	250	210	175	8×D19	17	125
125	330	270	250	210	8×D23	17	125
150	360	310	280	240	8×D23	19	125
200	450	400	330	290	12×D23	22	125
