Marine Sea Water Strainer
● Standard: JIS
● Body material: cast iron, carbon steel
● Pressure for flange: 5K, 10K
● Applicable: water, oil, steam
Description
Marine sea water strainer is used in marine pipelines to prevent impurities from entering the ship system, and protect the normal operation of equipment.
Marine sea water filter JISF7121 also know as marine can water filter, or marine basket water filer
Standard: JIS
marine sea water strainer
Standard
JIS F7121
Certification
CCS, ABS, BV, LR, GL, DNV
Product Material
Body material: cast iron
Strainer: Stainless Steel (SUS304)

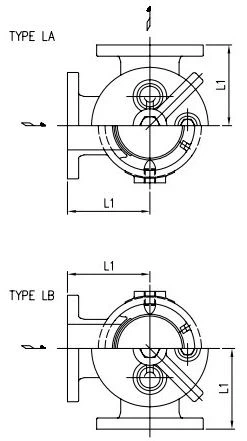

Type:
S, LA, LB
Applicable:
for can water, sea water
Reference temperature environment:30℃
Operating ambient temperature:(average daily temperature ≤ +35℃) -35~+70c

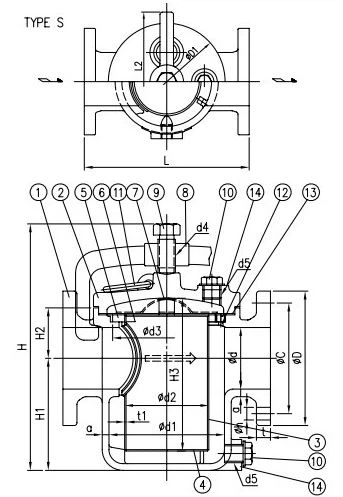

Dimension
|
DN mm |
d |
L |
L1 |
H |
Flange |
Weight kg |
|||
|
D |
C |
n-h |
t |
||||||
|
25 |
25 |
170 |
85 |
180 |
95 |
75 |
4-12 |
14 |
6.15 |
|
32 |
40 |
190 |
95 |
215 |
115 |
90 |
4-15 |
16 |
8.7 |
|
40 |
40 |
190 |
95 |
215 |
120 |
95 |
4-15 |
16 |
8.9 |
|
50 |
50 |
200 |
100 |
240 |
130 |
105 |
4-15 |
16 |
10.92 |
|
65 |
65 |
250 |
125 |
305 |
155 |
130 |
4-15 |
18 |
19.7 |
|
80 |
80 |
270 |
135 |
340 |
180 |
145 |
4-19 |
18 |
25.5 |
|
100 |
100 |
320 |
160 |
400 |
200 |
165 |
8-19 |
20 |
37.6 |

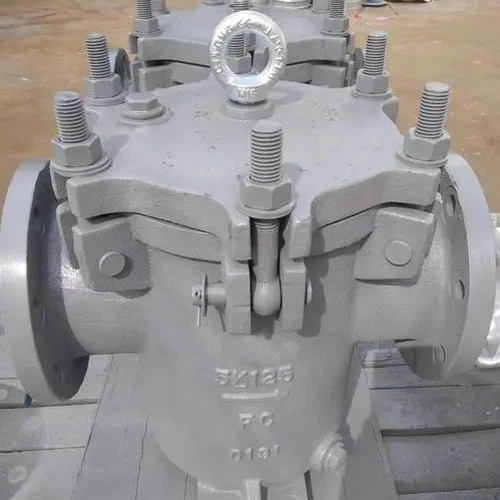

product display for marine sea water strainer JIS F7121
