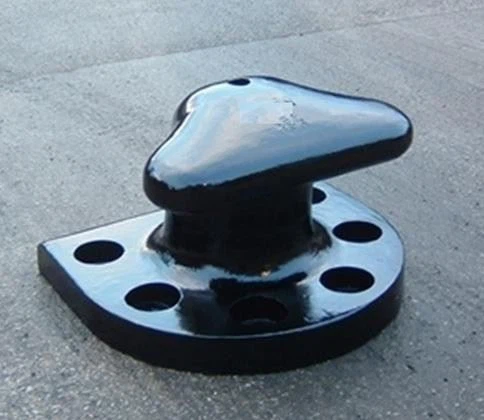

150Ton T-head Mooring Bollard
● Material: Ductile cast iron or cast steel
● Capacity: up to 300T
● Strong & long lasting designs
● Standard epoxy coating
● Easy installation and low maintenance cost
Description
150Ton T-head Mooring Bollard
T head bollard also called Tee head bollard or T bollard, it has a top shaped like a “T”, it is the commonest dock bollard its simplicity and it gets the job done well up to 300 tons. Suitable for steeper rope angles. T Head Bollards provide a compact high strength bollard system that can be utilised in a multitude of configurations.
Main Technical parameter
Capacity | Bolts | Bolts Quantity |
10 T | M20 | 4 |
15 T | M24 | 5 |
25 T | M30 | 5 |
30 T | M30 | 5 |
35 T | M30 | 6 |
50 T | M36 | 5 |
80 T | M42 | 6 |
100 T | M42 | 7 |
125 T | M48 | 7 |
150 T | M48 | 7 |
200 T | M56 | 8 |
250 T | M64 | 8 |
300 T | M64 | 10 |
Mooring Bollard Tips:
A bollard is designed and selected according to the berth capacity and the structure of the wharf to meet the requirements of safe, reliable and easy-to-use operations such as ship leaving the dock, berthing, shifting and turning around. The bollard is composed of shell, anchor rod, nut, washer, anchor plate and core packing.
